使用 GitHub 数据在 ClickHouse 中编写查询
此数据集包含 ClickHouse 仓库的所有提交和变更记录。可以使用 ClickHouse 附带的原生 git-import 工具生成。
生成的数据会为以下每个表提供一个 tsv 文件：
commits- 带统计信息的提交记录。file_changes- 每次提交中被修改的文件，以及关于这些变更的详细信息和统计信息。line_changes- 每次提交中，每个被修改文件里的每一行变更，包含该行的完整信息以及该行上一次变更的相关信息。
截至 2022 年 11 月 8 日，每个 TSV 的大致大小和行数如下：
commits- 7.8M - 266,051 行file_changes- 53M - 266,051 行line_changes- 2.7G - 7,535,157 行
生成数据
此步骤为可选。我们免费提供这些数据——请参阅下载并插入数据。
git clone [email protected]:ClickHouse/ClickHouse.git
cd ClickHouse
clickhouse git-import --skip-paths 'generated\.cpp|^(contrib|docs?|website|libs/(libcityhash|liblz4|libdivide|libvectorclass|libdouble-conversion|libcpuid|libzstd|libfarmhash|libmetrohash|libpoco|libwidechar_width))/' --skip-commits-with-messages '^Merge branch '
在 2021 款 MacBook Pro 上，为 ClickHouse 仓库完成此操作大约需要 3 分钟（数据截至 2022 年 11 月 8 日）。
可以通过工具自带的帮助获取可用选项的完整列表。
clickhouse git-import -h
本帮助文档还为上述每个表提供相应的 DDL，例如：
CREATE TABLE git.commits
(
hash String,
author LowCardinality(String),
time DateTime,
message String,
files_added UInt32,
files_deleted UInt32,
files_renamed UInt32,
files_modified UInt32,
lines_added UInt32,
lines_deleted UInt32,
hunks_added UInt32,
hunks_removed UInt32,
hunks_changed UInt32
) ENGINE = MergeTree ORDER BY time;
这些查询适用于任何代码仓库。请随意探索并报告你的发现。 关于执行时间有以下一些参考指南（截至 2022 年 11 月）：
- Linux -
~/clickhouse git-import- 160 分钟
下载和插入数据
以下数据可用于复现一个可工作的环境。或者，可以在 play.clickhouse.com 中获取该数据集——参见 Queries 获取更多详情。
以下仓库对应的生成文件如下：
- ClickHouse（2022 年 11 月 8 日）
- https://datasets-documentation.s3.amazonaws.com/github/commits/clickhouse/commits.tsv.xz - 2.5 MB
- https://datasets-documentation.s3.amazonaws.com/github/commits/clickhouse/file_changes.tsv.xz - 4.5MB
- https://datasets-documentation.s3.amazonaws.com/github/commits/clickhouse/line_changes.tsv.xz - 127.4 MB
- Linux（2022 年 11 月 8 日）
要插入这些数据，请先执行以下查询来准备数据库：
DROP DATABASE IF EXISTS git;
CREATE DATABASE git;
CREATE TABLE git.commits
(
hash String,
author LowCardinality(String),
time DateTime,
message String,
files_added UInt32,
files_deleted UInt32,
files_renamed UInt32,
files_modified UInt32,
lines_added UInt32,
lines_deleted UInt32,
hunks_added UInt32,
hunks_removed UInt32,
hunks_changed UInt32
) ENGINE = MergeTree ORDER BY time;
CREATE TABLE git.file_changes
(
change_type Enum('Add' = 1, 'Delete' = 2, 'Modify' = 3, 'Rename' = 4, 'Copy' = 5, 'Type' = 6),
path LowCardinality(String),
old_path LowCardinality(String),
file_extension LowCardinality(String),
lines_added UInt32,
lines_deleted UInt32,
hunks_added UInt32,
hunks_removed UInt32,
hunks_changed UInt32,
commit_hash String,
author LowCardinality(String),
time DateTime,
commit_message String,
commit_files_added UInt32,
commit_files_deleted UInt32,
commit_files_renamed UInt32,
commit_files_modified UInt32,
commit_lines_added UInt32,
commit_lines_deleted UInt32,
commit_hunks_added UInt32,
commit_hunks_removed UInt32,
commit_hunks_changed UInt32
) ENGINE = MergeTree ORDER BY time;
CREATE TABLE git.line_changes
(
sign Int8,
line_number_old UInt32,
line_number_new UInt32,
hunk_num UInt32,
hunk_start_line_number_old UInt32,
hunk_start_line_number_new UInt32,
hunk_lines_added UInt32,
hunk_lines_deleted UInt32,
hunk_context LowCardinality(String),
line LowCardinality(String),
indent UInt8,
line_type Enum('Empty' = 0, 'Comment' = 1, 'Punct' = 2, 'Code' = 3),
prev_commit_hash String,
prev_author LowCardinality(String),
prev_time DateTime,
file_change_type Enum('Add' = 1, 'Delete' = 2, 'Modify' = 3, 'Rename' = 4, 'Copy' = 5, 'Type' = 6),
path LowCardinality(String),
old_path LowCardinality(String),
file_extension LowCardinality(String),
file_lines_added UInt32,
file_lines_deleted UInt32,
file_hunks_added UInt32,
file_hunks_removed UInt32,
file_hunks_changed UInt32,
commit_hash String,
author LowCardinality(String),
time DateTime,
commit_message String,
commit_files_added UInt32,
commit_files_deleted UInt32,
commit_files_renamed UInt32,
commit_files_modified UInt32,
commit_lines_added UInt32,
commit_lines_deleted UInt32,
commit_hunks_added UInt32,
commit_hunks_removed UInt32,
commit_hunks_changed UInt32
) ENGINE = MergeTree ORDER BY time;
使用 INSERT INTO SELECT 和 s3 函数 来插入数据。例如，在下面的示例中，我们将 ClickHouse 文件插入到各自对应的表中：
commits
INSERT INTO git.commits SELECT *
FROM s3('https://datasets-documentation.s3.amazonaws.com/github/commits/clickhouse/commits.tsv.xz', 'TSV', 'hash String,author LowCardinality(String), time DateTime, message String, files_added UInt32, files_deleted UInt32, files_renamed UInt32, files_modified UInt32, lines_added UInt32, lines_deleted UInt32, hunks_added UInt32, hunks_removed UInt32, hunks_changed UInt32')
0 rows in set. Elapsed: 1.826 sec. Processed 62.78 thousand rows, 8.50 MB (34.39 thousand rows/s., 4.66 MB/s.)
file_changes
INSERT INTO git.file_changes SELECT *
FROM s3('https://datasets-documentation.s3.amazonaws.com/github/commits/clickhouse/file_changes.tsv.xz', 'TSV', 'change_type Enum(\'Add\' = 1, \'Delete\' = 2, \'Modify\' = 3, \'Rename\' = 4, \'Copy\' = 5, \'Type\' = 6), path LowCardinality(String), old_path LowCardinality(String), file_extension LowCardinality(String), lines_added UInt32, lines_deleted UInt32, hunks_added UInt32, hunks_removed UInt32, hunks_changed UInt32, commit_hash String, author LowCardinality(String), time DateTime, commit_message String, commit_files_added UInt32, commit_files_deleted UInt32, commit_files_renamed UInt32, commit_files_modified UInt32, commit_lines_added UInt32, commit_lines_deleted UInt32, commit_hunks_added UInt32, commit_hunks_removed UInt32, commit_hunks_changed UInt32')
0 rows in set. Elapsed: 2.688 sec. Processed 266.05 thousand rows, 48.30 MB (98.97 thousand rows/s., 17.97 MB/s.)
line_changes
INSERT INTO git.line_changes SELECT *
FROM s3('https://datasets-documentation.s3.amazonaws.com/github/commits/clickhouse/line_changes.tsv.xz', 'TSV', ' sign Int8, line_number_old UInt32, line_number_new UInt32, hunk_num UInt32, hunk_start_line_number_old UInt32, hunk_start_line_number_new UInt32, hunk_lines_added UInt32,\n hunk_lines_deleted UInt32, hunk_context LowCardinality(String), line LowCardinality(String), indent UInt8, line_type Enum(\'Empty\' = 0, \'Comment\' = 1, \'Punct\' = 2, \'Code\' = 3), prev_commit_hash String, prev_author LowCardinality(String), prev_time DateTime, file_change_type Enum(\'Add\' = 1, \'Delete\' = 2, \'Modify\' = 3, \'Rename\' = 4, \'Copy\' = 5, \'Type\' = 6),\n path LowCardinality(String), old_path LowCardinality(String), file_extension LowCardinality(String), file_lines_added UInt32, file_lines_deleted UInt32, file_hunks_added UInt32, file_hunks_removed UInt32, file_hunks_changed UInt32, commit_hash String,\n author LowCardinality(String), time DateTime, commit_message String, commit_files_added UInt32, commit_files_deleted UInt32, commit_files_renamed UInt32, commit_files_modified UInt32, commit_lines_added UInt32, commit_lines_deleted UInt32, commit_hunks_added UInt32, commit_hunks_removed UInt32, commit_hunks_changed UInt32')
返回 0 行。耗时：50.535 秒。处理了 754 万行，2.09 GB（每秒 14.911 万行，41.40 MB/s）。
查询
该工具会在其帮助输出中给出若干建议查询。除了这些查询之外，我们还回答了一些额外的相关问题。这些查询大致按复杂度递增排序，而不是遵循工具内部的默认顺序。
该数据集可以在 play.clickhouse.com 的 git_clickhouse 数据库中获取。我们为所有查询都提供了指向该环境的链接，并在需要时调整数据库名称。请注意，由于数据采集时间不同，play 环境中的查询结果可能与此处展示的结果有所差异。
单个文件的历史记录
这是最简单的查询之一。在这里我们查看 StorageReplicatedMergeTree.cpp 的所有提交信息。由于这些通常更值得关注，我们按最新的提交优先排序。
SELECT
time,
substring(commit_hash, 1, 11) AS commit,
change_type,
author,
path,
old_path,
lines_added,
lines_deleted,
commit_message
FROM git.file_changes
WHERE path = 'src/Storages/StorageReplicatedMergeTree.cpp'
ORDER BY time DESC
LIMIT 10
┌────────────────time─┬─commit──────┬─change_type─┬─author─────────────┬─path────────────────────────────────────────┬─old_path─┬─lines_added─┬─lines_deleted─┬─commit_message───────────────────────────────────┐
│ 2022-10-30 16:30:51 │ c68ab231f91 │ 修改 │ Alexander Tokmakov │ src/Storages/StorageReplicatedMergeTree.cpp │ │ 13 │ 10 │ 修复删除状态下访问数据部分的问题 │
│ 2022-10-23 16:24:20 │ b40d9200d20 │ 修改 │ Anton Popov │ src/Storages/StorageReplicatedMergeTree.cpp │ │ 28 │ 30 │ 改进 DataPartStorage 常量性语义 │
│ 2022-10-23 01:23:15 │ 56e5daba0c9 │ 修改 │ Anton Popov │ src/Storages/StorageReplicatedMergeTree.cpp │ │ 28 │ 44 │ 移除 DataPartStorageBuilder │
│ 2022-10-21 13:35:37 │ 851f556d65a │ 修改 │ Igor Nikonov │ src/Storages/StorageReplicatedMergeTree.cpp │ │ 3 │ 2 │ 移除未使用的参数 │
│ 2022-10-21 13:02:52 │ 13d31eefbc3 │ 修改 │ Igor Nikonov │ src/Storages/StorageReplicatedMergeTree.cpp │ │ 4 │ 4 │ ReplicatedMergeTree 优化 │
│ 2022-10-21 12:25:19 │ 4e76629aafc │ 修改 │ Azat Khuzhin │ src/Storages/StorageReplicatedMergeTree.cpp │ │ 3 │ 2 │ 修复 -Wshorten-64-to-32 警告 │
│ 2022-10-19 13:59:28 │ 05e6b94b541 │ 修改 │ Antonio Andelic │ src/Storages/StorageReplicatedMergeTree.cpp │ │ 4 │ 0 │ 代码优化 │
│ 2022-10-19 13:34:20 │ e5408aac991 │ 修改 │ Antonio Andelic │ src/Storages/StorageReplicatedMergeTree.cpp │ │ 3 │ 53 │ 简化逻辑 │
│ 2022-10-18 15:36:11 │ 7befe2825c9 │ 修改 │ Alexey Milovidov │ src/Storages/StorageReplicatedMergeTree.cpp │ │ 2 │ 2 │ 更新 StorageReplicatedMergeTree.cpp │
│ 2022-10-18 15:35:44 │ 0623ad4e374 │ 修改 │ Alexey Milovidov │ src/Storages/StorageReplicatedMergeTree.cpp │ │ 1 │ 1 │ 更新 StorageReplicatedMergeTree.cpp │
└─────────────────────┴─────────────┴─────────────┴────────────────────┴─────────────────────────────────────────────┴──────────┴─────────────┴───────────────┴──────────────────────────────────────────────────┘
返回 10 行。耗时:0.006 秒。处理了 12.10 千行,1.60 MB(193 万行/秒,255.40 MB/秒)。
我们还可以查看行级变更，并排除重命名操作。也就是说，当文件曾以不同名称存在时，我们不会展示重命名之前的变更：
SELECT
time,
substring(commit_hash, 1, 11) AS commit,
sign,
line_number_old,
line_number_new,
author,
line
FROM git.line_changes
WHERE path = 'src/Storages/StorageReplicatedMergeTree.cpp'
ORDER BY line_number_new ASC
LIMIT 10
┌────────────────time─┬─commit──────┬─sign─┬─line_number_old─┬─line_number_new─┬─author───────────┬─line──────────────────────────────────────────────────┐
│ 2020-04-16 02:06:10 │ cdeda4ab915 │ -1 │ 1 │ 1 │ Alexey Milovidov │ #include <Disks/DiskSpaceMonitor.h> │
│ 2020-04-16 02:06:10 │ cdeda4ab915 │ 1 │ 2 │ 1 │ Alexey Milovidov │ #include <Core/Defines.h> │
│ 2020-04-16 02:06:10 │ cdeda4ab915 │ 1 │ 2 │ 2 │ Alexey Milovidov │ │
│ 2021-05-03 23:46:51 │ 02ce9cc7254 │ -1 │ 3 │ 2 │ Alexey Milovidov │ #include <Common/FieldVisitors.h> │
│ 2021-05-27 22:21:02 │ e2f29b9df02 │ -1 │ 3 │ 2 │ s-kat │ #include <Common/FieldVisitors.h> │
│ 2022-10-03 22:30:50 │ 210882b9c4d │ 1 │ 2 │ 3 │ alesapin │ #include <ranges> │
│ 2022-10-23 16:24:20 │ b40d9200d20 │ 1 │ 2 │ 3 │ Anton Popov │ #include <cstddef> │
│ 2021-06-20 09:24:43 │ 4c391f8e994 │ 1 │ 2 │ 3 │ Mike Kot │ #include "Common/hex.h" │
│ 2021-12-29 09:18:56 │ 8112a712336 │ -1 │ 6 │ 5 │ avogar │ #include <Common/ThreadPool.h> │
│ 2022-04-21 20:19:13 │ 9133e398b8c │ 1 │ 11 │ 12 │ Nikolai Kochetov │ #include <Storages/MergeTree/DataPartStorageOnDisk.h> │
└─────────────────────┴─────────────┴──────┴─────────────────┴─────────────────┴──────────────────┴───────────────────────────────────────────────────────┘
返回 10 行。用时:0.258 秒。已处理 754 万行,654.92 MB(2924 万行/秒,2.54 GB/秒)。
请注意，还有一个更复杂的查询版本，它会在考虑重命名的情况下查找文件的逐行提交历史。
查找当前有效文件
这对于后续分析很重要，因为那时我们只想考虑代码仓库中当前存在的文件。我们将这组文件近似定义为那些没有被重命名或删除（然后又被重新添加或重新命名）的文件。
注意：在 dbms、libs、tests/testflows/ 目录重命名期间，这些目录下文件的提交历史似乎出现了问题。因此我们也将这些目录排除在外。
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)') ORDER BY path
LIMIT 10
┌─path────────────────────────────────────────────────────────────┐
│ tests/queries/0_stateless/01054_random_printable_ascii_ubsan.sh │
│ tests/queries/0_stateless/02247_read_bools_as_numbers_json.sh │
│ tests/performance/file_table_function.xml │
│ tests/queries/0_stateless/01902_self_aliases_in_columns.sql │
│ tests/queries/0_stateless/01070_h3_get_base_cell.reference │
│ src/Functions/ztest.cpp │
│ src/Interpreters/InterpreterShowTablesQuery.h │
│ src/Parsers/Kusto/ParserKQLStatement.h │
│ tests/queries/0_stateless/00938_dataset_test.sql │
│ src/Dictionaries/Embedded/GeodataProviders/Types.h │
└─────────────────────────────────────────────────────────────────┘
返回 10 行。用时:0.085 秒。已处理 53.21 万行,8.68 MB(630 万行/秒,102.64 MB/秒)。
请注意，这样做允许文件被重命名后，再次被重命名回其原始名称。首先，我们对因重命名而被删除的文件，按照其 old_path 进行聚合。然后，将其与每个 path 的最后一次操作进行 UNION。最后，我们筛选出其中最终事件不是 Delete 的记录。
SELECT uniq(path)
FROM
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)') ORDER BY path
)
┌─uniq(path)─┐
│ 18559 │
└────────────┘
1 row in set. Elapsed: 0.089 sec. Processed 532.10 thousand rows, 8.68 MB (6.01 million rows/s., 97.99 MB/s.)
请注意，我们在导入过程中跳过了多个目录，例如：
--skip-paths 'generated\.cpp|^(contrib|docs?|website|libs/(libcityhash|liblz4|libdivide|libvectorclass|libdouble-conversion|libcpuid|libzstd|libfarmhash|libmetrohash|libpoco|libwidechar_width))/'
将此模式应用于 git list-files 时，会得到 18155 个文件。
git ls-files | grep -v -E 'generated\.cpp|^(contrib|docs?|website|libs/(libcityhash|liblz4|libdivide|libvectorclass|libdouble-conversion|libcpuid|libzstd|libfarmhash|libmetrohash|libpoco|libwidechar_width))/' | wc -l
18155
因此，我们当前的解决方案是对现有文件的估算
这里的差异是由以下几个因素造成的：
- 重命名操作可以与对文件的其他修改同时发生。这些操作会作为单独的事件记录在
file_changes中，但时间相同。argMax函数无法区分这些事件——它只会选择第一个值。插入记录的自然顺序（唯一可以用来确定正确顺序的方式）在进行union后无法保持，因此可能会选中修改事件。例如，下面src/Functions/geometryFromColumn.h文件在被重命名为src/Functions/geometryConverters.h之前发生了多次修改。我们当前的解决方案可能会将某个 Modify 事件视为最新更改，从而导致最终保留src/Functions/geometryFromColumn.h。
SELECT
change_type,
path,
old_path,
time,
commit_hash
FROM git.file_changes
WHERE (path = 'src/Functions/geometryFromColumn.h') OR (old_path = 'src/Functions/geometryFromColumn.h')
┌─change_type─┬─path───────────────────────────────┬─old_path───────────────────────────┬────────────────time─┬─commit_hash──────────────────────────────┐
│ 添加 │ src/Functions/geometryFromColumn.h │ │ 2021-03-11 12:08:16 │ 9376b676e9a9bb8911b872e1887da85a45f7479d │
│ 修改 │ src/Functions/geometryFromColumn.h │ │ 2021-03-11 12:08:16 │ 6d59be5ea4768034f6526f7f9813062e0c369f7b │
│ 修改 │ src/Functions/geometryFromColumn.h │ │ 2021-03-11 12:08:16 │ 33acc2aa5dc091a7cb948f78c558529789b2bad8 │
│ 修改 │ src/Functions/geometryFromColumn.h │ │ 2021-03-11 12:08:16 │ 78e0db268ceadc42f82bc63a77ee1a4da6002463 │
│ 修改 │ src/Functions/geometryFromColumn.h │ │ 2021-03-11 12:08:16 │ 14a891057d292a164c4179bfddaef45a74eaf83a │
│ 修改 │ src/Functions/geometryFromColumn.h │ │ 2021-03-11 12:08:16 │ d0d6e6953c2a2af9fb2300921ff96b9362f22edb │
│ 修改 │ src/Functions/geometryFromColumn.h │ │ 2021-03-11 12:08:16 │ fe8382521139a58c0ba277eb848e88894658db66 │
│ 修改 │ src/Functions/geometryFromColumn.h │ │ 2021-03-11 12:08:16 │ 3be3d5cde8788165bc0558f1e2a22568311c3103 │
│ 修改 │ src/Functions/geometryFromColumn.h │ │ 2021-03-11 12:08:16 │ afad9bf4d0a55ed52a3f55483bc0973456e10a56 │
│ 修改 │ src/Functions/geometryFromColumn.h │ │ 2021-03-11 12:08:16 │ e3290ecc78ca3ea82b49ebcda22b5d3a4df154e6 │
│ 重命名 │ src/Functions/geometryConverters.h │ src/Functions/geometryFromColumn.h │ 2021-03-11 12:08:16 │ 125945769586baf6ffd15919b29565b1b2a63218 │
└─────────────┴────────────────────────────────────┴────────────────────────────────────┴─────────────────────┴──────────────────────────────────────────┘
返回 11 行。用时:0.030 秒。已处理 26.605 万行,6.61 MB(889 万行/秒,220.82 MB/秒)。
- 提交历史不完整——缺少删除事件。来源和原因有待确定。
这些差异不应对我们的分析产生实质性影响。欢迎提供该查询的改进版本。
列出修改最多的文件
在当前文件范围内，我们将删除和新增的行数相加，作为修改次数。
WITH current_files AS
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND (NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)'))
ORDER BY path ASC
)
SELECT
path,
sum(lines_added) + sum(lines_deleted) AS modifications
FROM git.file_changes
WHERE (path IN (current_files)) AND (file_extension IN ('h', 'cpp', 'sql'))
GROUP BY path
ORDER BY modifications DESC
LIMIT 10
┌─path───────────────────────────────────────────────────┬─modifications─┐
│ src/Storages/StorageReplicatedMergeTree.cpp │ 21871 │
│ src/Storages/MergeTree/MergeTreeData.cpp │ 17709 │
│ programs/client/Client.cpp │ 15882 │
│ src/Storages/MergeTree/MergeTreeDataSelectExecutor.cpp │ 14249 │
│ src/Interpreters/InterpreterSelectQuery.cpp │ 12636 │
│ src/Parsers/ExpressionListParsers.cpp │ 11794 │
│ src/Analyzer/QueryAnalysisPass.cpp │ 11760 │
│ src/Coordination/KeeperStorage.cpp │ 10225 │
│ src/Functions/FunctionsConversion.h │ 9247 │
│ src/Parsers/ExpressionElementParsers.cpp │ 8197 │
└────────────────────────────────────────────────────────┴───────────────┘
返回 10 行。用时:0.134 秒。已处理 79.815 万行,16.46 MB(595 万行/秒,122.62 MB/秒)。
通常在一周中的哪一天进行代码提交？
SELECT
day_of_week,
count() AS c
FROM git.commits
GROUP BY dayOfWeek(time) AS day_of_week
┌─day_of_week─┬─────c─┐
│ 1 │ 10575 │
│ 2 │ 10645 │
│ 3 │ 10748 │
│ 4 │ 10944 │
│ 5 │ 10090 │
│ 6 │ 4617 │
│ 7 │ 5166 │
└─────────────┴───────┘
7 rows in set. Elapsed: 0.262 sec. Processed 62.78 thousand rows, 251.14 KB (239.73 thousand rows/s., 958.93 KB/s.)
这很合理，周五的工作效率往往会有所下降。很高兴看到大家在周末也继续提交代码！非常感谢所有贡献者！
子目录/文件的历史——随时间变化的行数、提交次数和贡献者数量
如果不进行过滤，查询结果会非常庞大，不便展示或可视化。因此，在下面的示例中，我们支持按文件或子目录进行过滤。这里我们使用 toStartOfWeek 函数按周分组——可根据需要进行调整。
SELECT
week,
sum(lines_added) AS lines_added,
sum(lines_deleted) AS lines_deleted,
uniq(commit_hash) AS num_commits,
uniq(author) AS authors
FROM git.file_changes
WHERE path LIKE 'src/Storages%'
GROUP BY toStartOfWeek(time) AS week
ORDER BY week ASC
LIMIT 10
┌───────week─┬─lines_added─┬─lines_deleted─┬─num_commits─┬─authors─┐
│ 2020-03-29 │ 49 │ 35 │ 4 │ 3 │
│ 2020-04-05 │ 940 │ 601 │ 55 │ 14 │
│ 2020-04-12 │ 1472 │ 607 │ 32 │ 11 │
│ 2020-04-19 │ 917 │ 841 │ 39 │ 12 │
│ 2020-04-26 │ 1067 │ 626 │ 36 │ 10 │
│ 2020-05-03 │ 514 │ 435 │ 27 │ 10 │
│ 2020-05-10 │ 2552 │ 537 │ 48 │ 12 │
│ 2020-05-17 │ 3585 │ 1913 │ 83 │ 9 │
│ 2020-05-24 │ 2851 │ 1812 │ 74 │ 18 │
│ 2020-05-31 │ 2771 │ 2077 │ 77 │ 16 │
└────────────┴─────────────┴───────────────┴─────────────┴─────────┘
返回 10 行。耗时:0.043 秒。已处理 26.605 万行,15.85 MB(612 万行/秒,364.61 MB/秒)。
这些数据非常适合可视化展示。下面我们使用 Superset。

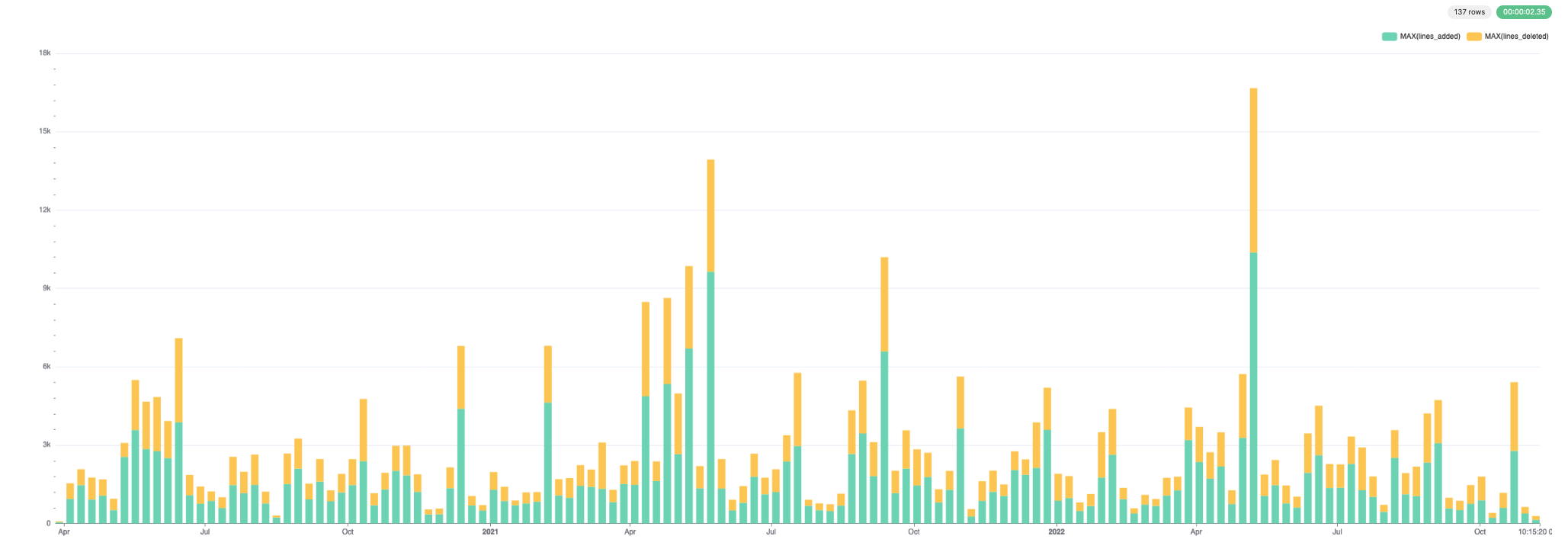

针对新增与删除的代码行数：

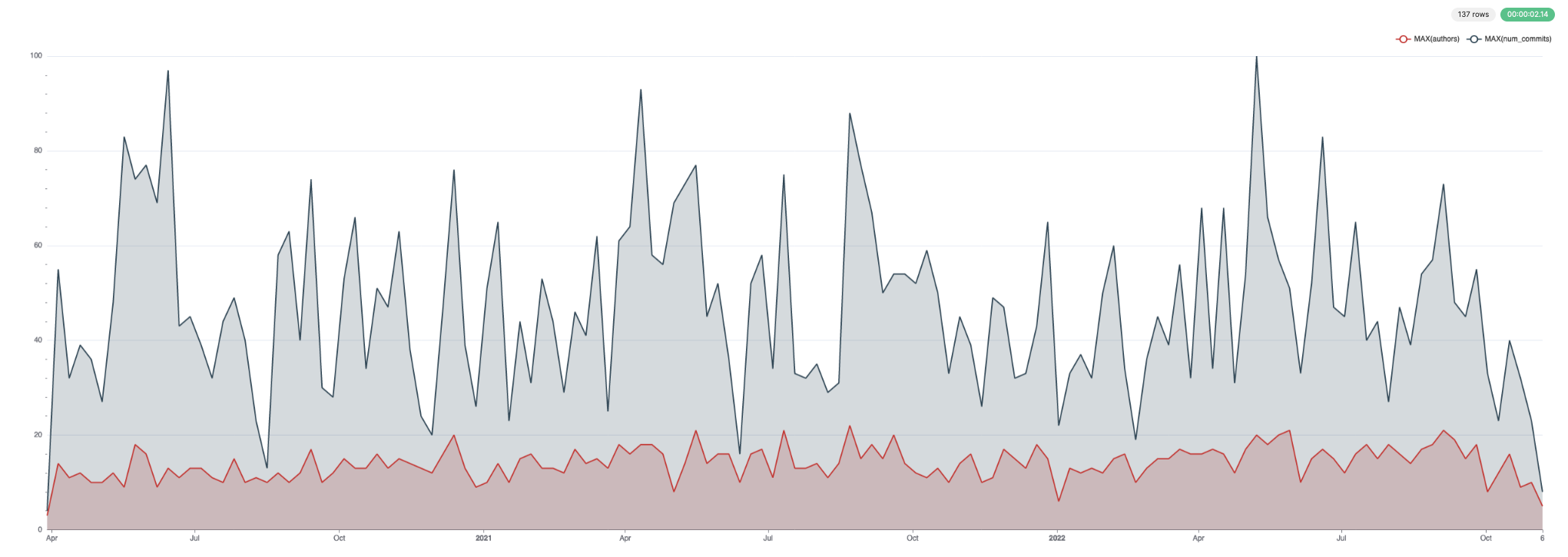

针对提交与作者：
列出作者数量最多的文件
仅限当前文件。
WITH current_files AS
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND (NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)'))
ORDER BY path ASC
)
SELECT
path,
uniq(author) AS num_authors
FROM git.file_changes
WHERE path IN (current_files)
GROUP BY path
ORDER BY num_authors DESC
LIMIT 10
┌─path────────────────────────────────────────┬─num_authors─┐
│ src/Core/Settings.h │ 127 │
│ CMakeLists.txt │ 96 │
│ .gitmodules │ 85 │
│ src/Storages/MergeTree/MergeTreeData.cpp │ 72 │
│ src/CMakeLists.txt │ 71 │
│ programs/server/Server.cpp │ 70 │
│ src/Interpreters/Context.cpp │ 64 │
│ src/Storages/StorageReplicatedMergeTree.cpp │ 63 │
│ src/Common/ErrorCodes.cpp │ 61 │
│ src/Interpreters/InterpreterSelectQuery.cpp │ 59 │
└─────────────────────────────────────────────┴─────────────┘
返回 10 行。用时:0.239 秒。已处理 79.815 万行,14.13 MB(335 万行/秒,59.22 MB/秒)。
仓库中最早的代码行
仅针对当前文件。
WITH current_files AS
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND (NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)'))
ORDER BY path ASC
)
SELECT
any(path) AS file_path,
line,
max(time) AS latest_change,
any(file_change_type)
FROM git.line_changes
WHERE path IN (current_files)
GROUP BY line
ORDER BY latest_change ASC
LIMIT 10
┌─file_path───────────────────────────────────┬─line────────────────────────────────────────────────────────┬───────latest_change─┬─any(file_change_type)─┐
│ utils/compressor/test.sh │ ./compressor -d < compressor.snp > compressor2 │ 2011-06-17 22:19:39 │ 修改 │
│ utils/compressor/test.sh │ ./compressor < compressor > compressor.snp │ 2011-06-17 22:19:39 │ 修改 │
│ utils/compressor/test.sh │ ./compressor -d < compressor.qlz > compressor2 │ 2014-02-24 03:14:30 │ 添加 │
│ utils/compressor/test.sh │ ./compressor < compressor > compressor.qlz │ 2014-02-24 03:14:30 │ 添加 │
│ utils/config-processor/config-processor.cpp │ if (argc != 2) │ 2014-02-26 19:10:00 │ 添加 │
│ utils/config-processor/config-processor.cpp │ std::cerr << "std::exception: " << e.what() << std::endl; │ 2014-02-26 19:10:00 │ 添加 │
│ utils/config-processor/config-processor.cpp │ std::cerr << "Exception: " << e.displayText() << std::endl; │ 2014-02-26 19:10:00 │ 添加 │
│ utils/config-processor/config-processor.cpp │ Poco::XML::DOMWriter().writeNode(std::cout, document); │ 2014-02-26 19:10:00 │ 添加 │
│ utils/config-processor/config-processor.cpp │ std::cerr << "Some exception" << std::endl; │ 2014-02-26 19:10:00 │ 添加 │
│ utils/config-processor/config-processor.cpp │ std::cerr << "usage: " << argv[0] << " path" << std::endl; │ 2014-02-26 19:10:00 │ 添加 │
└─────────────────────────────────────────────┴─────────────────────────────────────────────────────────────┴─────────────────────┴───────────────────────┘
返回 10 行。用时:1.101 秒。处理了 807 万行,905.86 MB(733 万行/秒,823.13 MB/秒)。
历史最悠久的文件
仅包含当前仍存在的文件。
WITH current_files AS
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND (NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)'))
ORDER BY path ASC
)
SELECT
count() AS c,
path,
max(time) AS latest_change
FROM git.file_changes
WHERE path IN (current_files)
GROUP BY path
ORDER BY c DESC
LIMIT 10
┌───c─┬─path────────────────────────────────────────┬───────latest_change─┐
│ 790 │ src/Storages/StorageReplicatedMergeTree.cpp │ 2022-10-30 16:30:51 │
│ 788 │ src/Storages/MergeTree/MergeTreeData.cpp │ 2022-11-04 09:26:44 │
│ 752 │ src/Core/Settings.h │ 2022-10-25 11:35:25 │
│ 749 │ CMakeLists.txt │ 2022-10-05 21:00:49 │
│ 575 │ src/Interpreters/InterpreterSelectQuery.cpp │ 2022-11-01 10:20:10 │
│ 563 │ CHANGELOG.md │ 2022-10-27 08:19:50 │
│ 491 │ src/Interpreters/Context.cpp │ 2022-10-25 12:26:29 │
│ 437 │ programs/server/Server.cpp │ 2022-10-21 12:25:19 │
│ 375 │ programs/client/Client.cpp │ 2022-11-03 03:16:55 │
│ 350 │ src/CMakeLists.txt │ 2022-10-24 09:22:37 │
└─────┴─────────────────────────────────────────────┴─────────────────────┘
返回 10 行。用时:0.124 秒。处理了 79.815 万行,14.71 MB(644 万行/秒,118.61 MB/秒)。
我们的核心数据结构 MergeTree 显然也在持续演进，迄今已经历了大量改进！
本月在文档和代码方面的贡献分布
在数据采集过程中，由于 docs/ 目录的提交历史非常杂乱，其变更已被过滤掉。因此，本查询结果并不完全准确。
我们是否会在每月的某些时间点（例如接近发布日）编写更多文档？我们可以使用 countIf 函数计算一个简单比率，并使用 bar 函数将结果可视化展示出来。
SELECT
day,
bar(docs_ratio * 1000, 0, 100, 100) AS bar
FROM
(
SELECT
day,
countIf(file_extension IN ('h', 'cpp', 'sql')) AS code,
countIf(file_extension = 'md') AS docs,
docs / (code + docs) AS docs_ratio
FROM git.line_changes
WHERE (sign = 1) AND (file_extension IN ('h', 'cpp', 'sql', 'md'))
GROUP BY dayOfMonth(time) AS day
)
┌─day─┬─bar─────────────────────────────────────────────────────────────┐
│ 1 │ ███████████████████████████████████▍ │
│ 2 │ ███████████████████████▋ │
│ 3 │ ████████████████████████████████▋ │
│ 4 │ █████████████ │
│ 5 │ █████████████████████▎ │
│ 6 │ ████████ │
│ 7 │ ███▋ │
│ 8 │ ████████▌ │
│ 9 │ ██████████████▎ │
│ 10 │ █████████████████▏ │
│ 11 │ █████████████▎ │
│ 12 │ ███████████████████████████████████▋ │
│ 13 │ █████████████████████████████▎ │
│ 14 │ ██████▋ │
│ 15 │ █████████████████████████████████████████▊ │
│ 16 │ ██████████▎ │
│ 17 │ ██████████████████████████████████████▋ │
│ 18 │ █████████████████████████████████▌ │
│ 19 │ ███████████ │
│ 20 │ █████████████████████████████████▊ │
│ 21 │ █████ │
│ 22 │ ███████████████████████▋ │
│ 23 │ ███████████████████████████▌ │
│ 24 │ ███████▌ │
│ 25 │ ██████████████████████████████████▎ │
│ 26 │ ███████████▏ │
│ 27 │ ███████████████████████████████████████████████████████████████ │
│ 28 │ ████████████████████████████████████████████████████▏ │
│ 29 │ ███▌ │
│ 30 │ ████████████████████████████████████████▎ │
│ 31 │ █████████████████████████████████▏ │
└─────┴─────────────────────────────────────────────────────────────────┘
返回了 31 行。耗时：0.043 秒。处理了 754 万行，40.53 MB（1.7671 亿行/秒，950.40 MB/秒）。
在月底时可能会稍微多一点，但整体来看分布比较均匀。需要再次说明的是，由于在数据插入过程中应用了 docs 过滤器进行筛选，因此这些结果并不可靠。
影响最广泛的作者
这里我们将多样性定义为某位作者参与贡献过的不同文件数量。
SELECT
author,
uniq(path) AS num_files
FROM git.file_changes
WHERE (change_type IN ('Add', 'Modify')) AND (file_extension IN ('h', 'cpp', 'sql'))
GROUP BY author
ORDER BY num_files DESC
LIMIT 10
┌─author─────────────┬─num_files─┐
│ Alexey Milovidov │ 8433 │
│ Nikolai Kochetov │ 3257 │
│ Vitaly Baranov │ 2316 │
│ Maksim Kita │ 2172 │
│ Azat Khuzhin │ 1988 │
│ alesapin │ 1818 │
│ Alexander Tokmakov │ 1751 │
│ Amos Bird │ 1641 │
│ Ivan │ 1629 │
│ alexey-milovidov │ 1581 │
└────────────────────┴───────────┘
返回 10 行。用时:0.041 秒。已处理 26.605 万行,4.92 MB(656 万行/秒,121.21 MB/秒)。
让我们看看最近的工作中谁的提交最为多样。与其按日期限制，我们将限定为某个作者最近的 N 次提交（本例中使用的是 3，您可以根据需要修改）：
SELECT
author,
sum(num_files_commit) AS num_files
FROM
(
SELECT
author,
commit_hash,
uniq(path) AS num_files_commit,
max(time) AS commit_time
FROM git.file_changes
WHERE (change_type IN ('Add', 'Modify')) AND (file_extension IN ('h', 'cpp', 'sql'))
GROUP BY
author,
commit_hash
ORDER BY
author ASC,
commit_time DESC
LIMIT 3 BY author
)
GROUP BY author
ORDER BY num_files DESC
LIMIT 10
┌─author───────────────┬─num_files─┐
│ Mikhail │ 782 │
│ Li Yin │ 553 │
│ Roman Peshkurov │ 119 │
│ Vladimir Smirnov │ 88 │
│ f1yegor │ 65 │
│ maiha │ 54 │
│ Vitaliy Lyudvichenko │ 53 │
│ Pradeep Chhetri │ 40 │
│ Orivej Desh │ 38 │
│ liyang │ 36 │
└──────────────────────┴───────────┘
10 行在集合中。耗时：0.106 秒。处理了 266.05 千行，21.04 MB（252 万行/秒，198.93 MB/秒）。
作者的常用文件
在这里，我们选择我们的创始人 Alexey Milovidov，并将分析范围限定为当前的文件。
WITH current_files AS
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND (NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)'))
ORDER BY path ASC
)
SELECT
path,
count() AS c
FROM git.file_changes
WHERE (author = 'Alexey Milovidov') AND (path IN (current_files))
GROUP BY path
ORDER BY c DESC
LIMIT 10
┌─path────────────────────────────────────────┬───c─┐
│ CMakeLists.txt │ 165 │
│ CHANGELOG.md │ 126 │
│ programs/server/Server.cpp │ 73 │
│ src/Storages/MergeTree/MergeTreeData.cpp │ 71 │
│ src/Storages/StorageReplicatedMergeTree.cpp │ 68 │
│ src/Core/Settings.h │ 65 │
│ programs/client/Client.cpp │ 57 │
│ programs/server/play.html │ 48 │
│ .gitmodules │ 47 │
│ programs/install/Install.cpp │ 37 │
└─────────────────────────────────────────────┴─────┘
返回 10 行。用时:0.106 秒。已处理 79.815 万行,13.97 MB(751 万行/秒,131.41 MB/秒)。
这很合理，因为 Alexey 一直负责维护变更日志。但如果我们使用文件的基名来识别他最受欢迎的文件呢——这种做法允许文件在重命名后仍能被识别，并且应当更能体现代码层面的贡献。
SELECT
base,
count() AS c
FROM git.file_changes
WHERE (author = 'Alexey Milovidov') AND (file_extension IN ('h', 'cpp', 'sql'))
GROUP BY basename(path) AS base
ORDER BY c DESC
LIMIT 10
┌─base───────────────────────────┬───c─┐
│ StorageReplicatedMergeTree.cpp │ 393 │
│ InterpreterSelectQuery.cpp │ 299 │
│ Aggregator.cpp │ 297 │
│ Client.cpp │ 280 │
│ MergeTreeData.cpp │ 274 │
│ Server.cpp │ 264 │
│ ExpressionAnalyzer.cpp │ 259 │
│ StorageMergeTree.cpp │ 239 │
│ Settings.h │ 225 │
│ TCPHandler.cpp │ 205 │
└────────────────────────────────┴─────┘
返回 10 行。用时:0.032 秒。已处理 26.605 万行,5.68 MB(822 万行/秒,175.50 MB/秒)。
这可能更能体现他的兴趣领域。
作者最少的大型文件
为此，我们首先需要找出最大的文件。如果要基于提交历史，为每个文件完整重建所有版本来估算大小，代价会非常高！
为了估算，在假设我们只考虑当前仍然存在的文件的前提下，我们对新增行数求和并减去删除行数。然后就可以计算文件长度与作者数量的比值。
WITH current_files AS
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND (NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)'))
ORDER BY path ASC
)
SELECT
path,
sum(lines_added) - sum(lines_deleted) AS num_lines,
uniqExact(author) AS num_authors,
num_lines / num_authors AS lines_author_ratio
FROM git.file_changes
WHERE path IN (current_files)
GROUP BY path
ORDER BY lines_author_ratio DESC
LIMIT 10
┌─path──────────────────────────────────────────────────────────────────┬─num_lines─┬─num_authors─┬─lines_author_ratio─┐
│ src/Common/ClassificationDictionaries/emotional_dictionary_rus.txt │ 148590 │ 1 │ 148590 │
│ src/Functions/ClassificationDictionaries/emotional_dictionary_rus.txt │ 55533 │ 1 │ 55533 │
│ src/Functions/ClassificationDictionaries/charset_freq.txt │ 35722 │ 1 │ 35722 │
│ src/Common/ClassificationDictionaries/charset_freq.txt │ 35722 │ 1 │ 35722 │
│ tests/integration/test_storage_meilisearch/movies.json │ 19549 │ 1 │ 19549 │
│ tests/queries/0_stateless/02364_multiSearch_function_family.reference │ 12874 │ 1 │ 12874 │
│ src/Functions/ClassificationDictionaries/programming_freq.txt │ 9434 │ 1 │ 9434 │
│ src/Common/ClassificationDictionaries/programming_freq.txt │ 9434 │ 1 │ 9434 │
│ tests/performance/explain_ast.xml │ 5911 │ 1 │ 5911 │
│ src/Analyzer/QueryAnalysisPass.cpp │ 5686 │ 1 │ 5686 │
└───────────────────────────────────────────────────────────────────────┴───────────┴─────────────┴────────────────────┘
10 rows in set. Elapsed: 0.138 sec. Processed 798.15 thousand rows, 16.57 MB (5.79 million rows/s., 120.11 MB/s.)
文本字典可能不太现实，所以我们就通过文件扩展名过滤器，将范围限制为代码文件吧！
WITH current_files AS
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND (NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)'))
ORDER BY path ASC
)
SELECT
path,
sum(lines_added) - sum(lines_deleted) AS num_lines,
uniqExact(author) AS num_authors,
num_lines / num_authors AS lines_author_ratio
FROM git.file_changes
WHERE (path IN (current_files)) AND (file_extension IN ('h', 'cpp', 'sql'))
GROUP BY path
ORDER BY lines_author_ratio DESC
LIMIT 10
┌─path──────────────────────────────────┬─num_lines─┬─num_authors─┬─lines_author_ratio─┐
│ src/Analyzer/QueryAnalysisPass.cpp │ 5686 │ 1 │ 5686 │
│ src/Analyzer/QueryTreeBuilder.cpp │ 880 │ 1 │ 880 │
│ src/Planner/Planner.cpp │ 873 │ 1 │ 873 │
│ src/Backups/RestorerFromBackup.cpp │ 869 │ 1 │ 869 │
│ utils/memcpy-bench/FastMemcpy.h │ 770 │ 1 │ 770 │
│ src/Planner/PlannerActionsVisitor.cpp │ 765 │ 1 │ 765 │
│ src/Functions/sphinxstemen.cpp │ 728 │ 1 │ 728 │
│ src/Planner/PlannerJoinTree.cpp │ 708 │ 1 │ 708 │
│ src/Planner/PlannerJoins.cpp │ 695 │ 1 │ 695 │
│ src/Analyzer/QueryNode.h │ 607 │ 1 │ 607 │
└───────────────────────────────────────┴───────────┴─────────────┴────────────────────┘
返回 10 行。用时:0.140 秒。已处理 79.815 万行,16.84 MB(570 万行/秒,120.32 MB/秒)。
这里存在一定的近期偏差——较新的文件本来就没有太多提交记录。如果我们把范围限制在至少已有 1 年历史的文件上呢？
WITH current_files AS
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND (NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)'))
ORDER BY path ASC
)
SELECT
min(time) AS min_date,
path,
sum(lines_added) - sum(lines_deleted) AS num_lines,
uniqExact(author) AS num_authors,
num_lines / num_authors AS lines_author_ratio
FROM git.file_changes
WHERE (path IN (current_files)) AND (file_extension IN ('h', 'cpp', 'sql'))
GROUP BY path
HAVING min_date <= (now() - toIntervalYear(1))
ORDER BY lines_author_ratio DESC
LIMIT 10
┌────────────min_date─┬─path───────────────────────────────────────────────────────────┬─num_lines─┬─num_authors─┬─lines_author_ratio─┐
│ 2021-03-08 07:00:54 │ utils/memcpy-bench/FastMemcpy.h │ 770 │ 1 │ 770 │
│ 2021-05-04 13:47:34 │ src/Functions/sphinxstemen.cpp │ 728 │ 1 │ 728 │
│ 2021-03-14 16:52:51 │ utils/memcpy-bench/glibc/dwarf2.h │ 592 │ 1 │ 592 │
│ 2021-03-08 09:04:52 │ utils/memcpy-bench/FastMemcpy_Avx.h │ 496 │ 1 │ 496 │
│ 2020-10-19 01:10:50 │ tests/queries/0_stateless/01518_nullable_aggregate_states2.sql │ 411 │ 1 │ 411 │
│ 2020-11-24 14:53:34 │ programs/server/GRPCHandler.cpp │ 399 │ 1 │ 399 │
│ 2021-03-09 14:10:28 │ src/DataTypes/Serializations/SerializationSparse.cpp │ 363 │ 1 │ 363 │
│ 2021-08-20 15:06:57 │ src/Functions/vectorFunctions.cpp │ 1327 │ 4 │ 331.75 │
│ 2020-08-04 03:26:23 │ src/Interpreters/MySQL/CreateQueryConvertVisitor.cpp │ 311 │ 1 │ 311 │
│ 2020-11-06 15:45:13 │ src/Storages/Rocksdb/StorageEmbeddedRocksdb.cpp │ 611 │ 2 │ 305.5 │
└─────────────────────┴────────────────────────────────────────────────────────────────┴───────────┴─────────────┴────────────────────┘
返回了 10 行。耗时: 0.143 秒。处理了 79.815 万行,18.00 MB (558 万行/秒,125.87 MB/秒)。
按时间、按星期几、按作者以及按特定子目录统计提交与代码行数分布
这里的含义是：按一周中每一天统计新增和删除的代码行数。在本示例中，我们聚焦于 Functions 目录
SELECT
dayOfWeek,
uniq(commit_hash) AS commits,
sum(lines_added) AS lines_added,
sum(lines_deleted) AS lines_deleted
FROM git.file_changes
WHERE path LIKE 'src/Functions%'
GROUP BY toDayOfWeek(time) AS dayOfWeek
┌─dayOfWeek─┬─commits─┬─lines_added─┬─lines_deleted─┐
│ 1 │ 476 │ 24619 │ 15782 │
│ 2 │ 434 │ 18098 │ 9938 │
│ 3 │ 496 │ 26562 │ 20883 │
│ 4 │ 587 │ 65674 │ 18862 │
│ 5 │ 504 │ 85917 │ 14518 │
│ 6 │ 314 │ 13604 │ 10144 │
│ 7 │ 294 │ 11938 │ 6451 │
└───────────┴─────────┴─────────────┴───────────────┘
返回 7 行。耗时:0.034 秒。处理了 26.605 万行,14.66 MB(773 万行/秒,425.56 MB/秒)。
并按一天中的时段，
SELECT
hourOfDay,
uniq(commit_hash) AS commits,
sum(lines_added) AS lines_added,
sum(lines_deleted) AS lines_deleted
FROM git.file_changes
WHERE path LIKE 'src/Functions%'
GROUP BY toHour(time) AS hourOfDay
┌─hourOfDay─┬─commits─┬─lines_added─┬─lines_deleted─┐
│ 0 │ 71 │ 4169 │ 3404 │
│ 1 │ 90 │ 2174 │ 1927 │
│ 2 │ 65 │ 2343 │ 1515 │
│ 3 │ 76 │ 2552 │ 493 │
│ 4 │ 62 │ 1480 │ 1304 │
│ 5 │ 38 │ 1644 │ 253 │
│ 6 │ 104 │ 4434 │ 2979 │
│ 7 │ 117 │ 4171 │ 1678 │
│ 8 │ 106 │ 4604 │ 4673 │
│ 9 │ 135 │ 60550 │ 2678 │
│ 10 │ 149 │ 6133 │ 3482 │
│ 11 │ 182 │ 8040 │ 3833 │
│ 12 │ 209 │ 29428 │ 15040 │
│ 13 │ 187 │ 10204 │ 5491 │
│ 14 │ 204 │ 9028 │ 6060 │
│ 15 │ 231 │ 15179 │ 10077 │
│ 16 │ 196 │ 9568 │ 5925 │
│ 17 │ 138 │ 4941 │ 3849 │
│ 18 │ 123 │ 4193 │ 3036 │
│ 19 │ 165 │ 8817 │ 6646 │
│ 20 │ 140 │ 3749 │ 2379 │
│ 21 │ 132 │ 41585 │ 4182 │
│ 22 │ 85 │ 4094 │ 3955 │
│ 23 │ 100 │ 3332 │ 1719 │
└───────────┴─────────┴─────────────┴───────────────┘
24 rows in set. Elapsed: 0.039 sec. Processed 266.05 thousand rows, 14.66 MB (6.77 million rows/s., 372.89 MB/s.)
考虑到我们的开发团队大部分在阿姆斯特丹，这样的分布是符合预期的。bar 函数可以帮助我们对这些分布进行可视化展示：
SELECT
hourOfDay,
bar(commits, 0, 400, 50) AS commits,
bar(lines_added, 0, 30000, 50) AS lines_added,
bar(lines_deleted, 0, 15000, 50) AS lines_deleted
FROM
(
SELECT
hourOfDay,
uniq(commit_hash) AS commits,
sum(lines_added) AS lines_added,
sum(lines_deleted) AS lines_deleted
FROM git.file_changes
WHERE path LIKE 'src/Functions%'
GROUP BY toHour(time) AS hourOfDay
)
┌─hourOfDay─┬─commits───────────────────────┬─lines_added────────────────────────────────────────┬─lines_deleted──────────────────────────────────────┐
│ 0 │ ████████▊ │ ██████▊ │ ███████████▎ │
│ 1 │ ███████████▎ │ ███▌ │ ██████▍ │
│ 2 │ ████████ │ ███▊ │ █████ │
│ 3 │ █████████▌ │ ████▎ │ █▋ │
│ 4 │ ███████▋ │ ██▍ │ ████▎ │
│ 5 │ ████▋ │ ██▋ │ ▋ │
│ 6 │ █████████████ │ ███████▍ │ █████████▊ │
│ 7 │ ██████████████▋ │ ██████▊ │ █████▌ │
│ 8 │ █████████████▎ │ ███████▋ │ ███████████████▌ │
│ 9 │ ████████████████▊ │ ██████████████████████████████████████████████████ │ ████████▊ │
│ 10 │ ██████████████████▋ │ ██████████▏ │ ███████████▌ │
│ 11 │ ██████████████████████▋ │ █████████████▍ │ ████████████▋ │
│ 12 │ ██████████████████████████ │ █████████████████████████████████████████████████ │ ██████████████████████████████████████████████████ │
│ 13 │ ███████████████████████▍ │ █████████████████ │ ██████████████████▎ │
│ 14 │ █████████████████████████▌ │ ███████████████ │ ████████████████████▏ │
│ 15 │ ████████████████████████████▊ │ █████████████████████████▎ │ █████████████████████████████████▌ │
│ 16 │ ████████████████████████▌ │ ███████████████▊ │ ███████████████████▋ │
│ 17 │ █████████████████▎ │ ████████▏ │ ████████████▋ │
│ 18 │ ███████████████▍ │ ██████▊ │ ██████████ │
│ 19 │ ████████████████████▋ │ ██████████████▋ │ ██████████████████████▏ │
│ 20 │ █████████████████▌ │ ██████▏ │ ███████▊ │
│ 21 │ ████████████████▌ │ ██████████████████████████████████████████████████ │ █████████████▊ │
│ 22 │ ██████████▋ │ ██████▋ │ █████████████▏ │
│ 23 │ ████████████▌ │ █████▌ │ █████▋ │
└───────────┴───────────────────────────────┴────────────────────────────────────────────────────┴────────────────────────────────────────────────────┘
返回 24 行。耗时:0.038 秒。已处理 26.605 万行,14.66 MB(每秒 709 万行,390.69 MB/秒)
用于展示不同作者之间谁更倾向于重写他人代码的矩阵
sign = -1 表示代码删除。我们会排除标点符号以及空行的插入。
SELECT
prev_author || '(a)' AS add_author,
author || '(d)' AS delete_author,
count() AS c
FROM git.line_changes
WHERE (sign = -1) AND (file_extension IN ('h', 'cpp')) AND (line_type NOT IN ('Punct', 'Empty')) AND (author != prev_author) AND (prev_author != '')
GROUP BY
prev_author,
author
ORDER BY c DESC
LIMIT 1 BY prev_author
LIMIT 100
┌─prev_author──────────┬─author───────────┬─────c─┐
│ Ivan │ Alexey Milovidov │ 18554 │
│ Alexey Arno │ Alexey Milovidov │ 18475 │
│ Michael Kolupaev │ Alexey Milovidov │ 14135 │
│ Alexey Milovidov │ Nikolai Kochetov │ 13435 │
│ Andrey Mironov │ Alexey Milovidov │ 10418 │
│ proller │ Alexey Milovidov │ 7280 │
│ Nikolai Kochetov │ Alexey Milovidov │ 6806 │
│ alexey-milovidov │ Alexey Milovidov │ 5027 │
│ Vitaliy Lyudvichenko │ Alexey Milovidov │ 4390 │
│ Amos Bird │ Ivan Lezhankin │ 3125 │
│ f1yegor │ Alexey Milovidov │ 3119 │
│ Pavel Kartavyy │ Alexey Milovidov │ 3087 │
│ Alexey Zatelepin │ Alexey Milovidov │ 2978 │
│ alesapin │ Alexey Milovidov │ 2949 │
│ Sergey Fedorov │ Alexey Milovidov │ 2727 │
│ Ivan Lezhankin │ Alexey Milovidov │ 2618 │
│ Vasily Nemkov │ Alexey Milovidov │ 2547 │
│ Alexander Tokmakov │ Alexey Milovidov │ 2493 │
│ Nikita Vasilev │ Maksim Kita │ 2420 │
│ Anton Popov │ Amos Bird │ 2127 │
└──────────────────────┴──────────────────┴───────┘
返回 20 行。用时:0.098 秒。已处理 754 万行,42.16 MB(7667 万行/秒,428.99 MB/秒)。

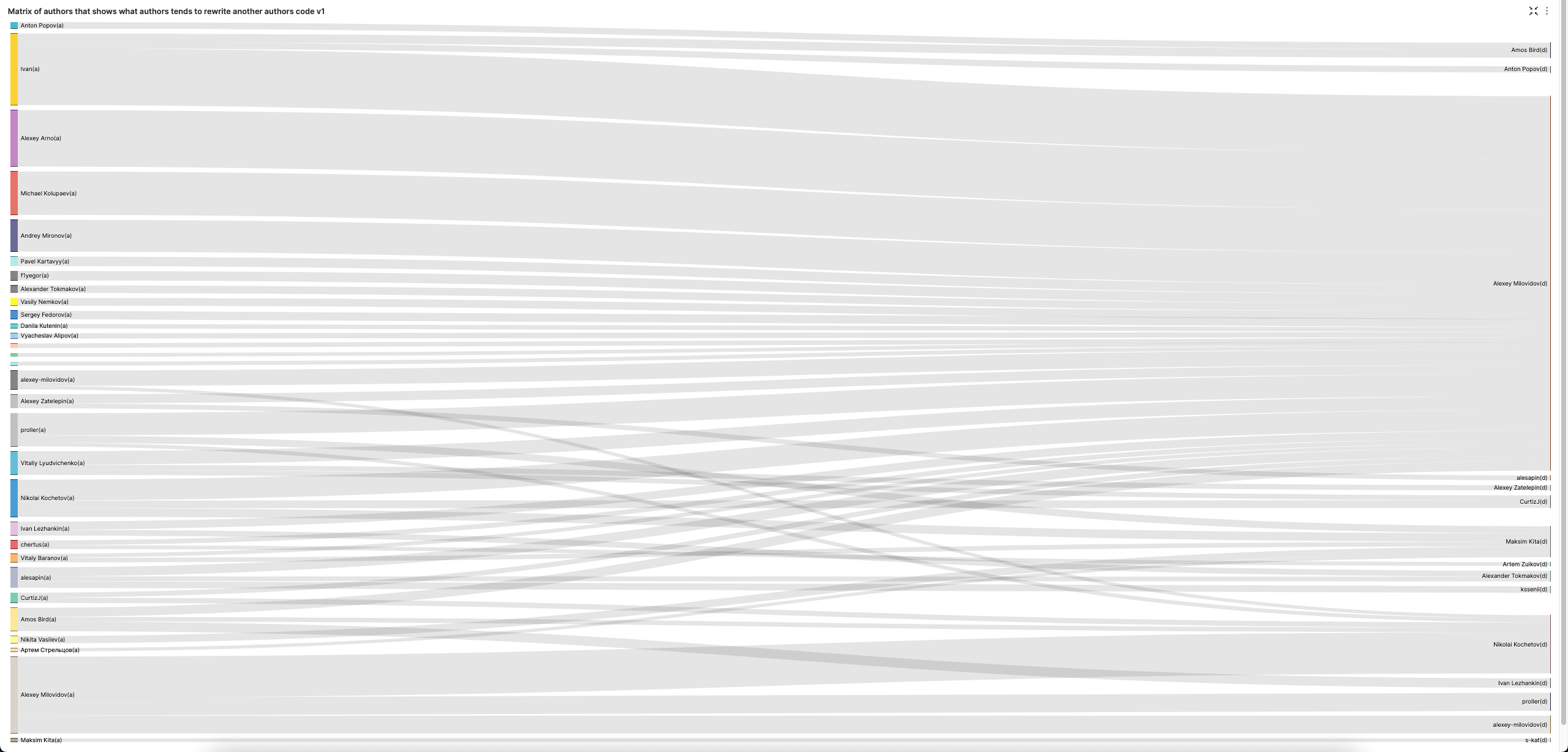

使用 Superset 的桑基图可以很好地进行可视化。注意我们将 LIMIT BY 增加到 3，以获取每位作者删除代码最多的前 3 名，从而让可视化效果更加丰富。

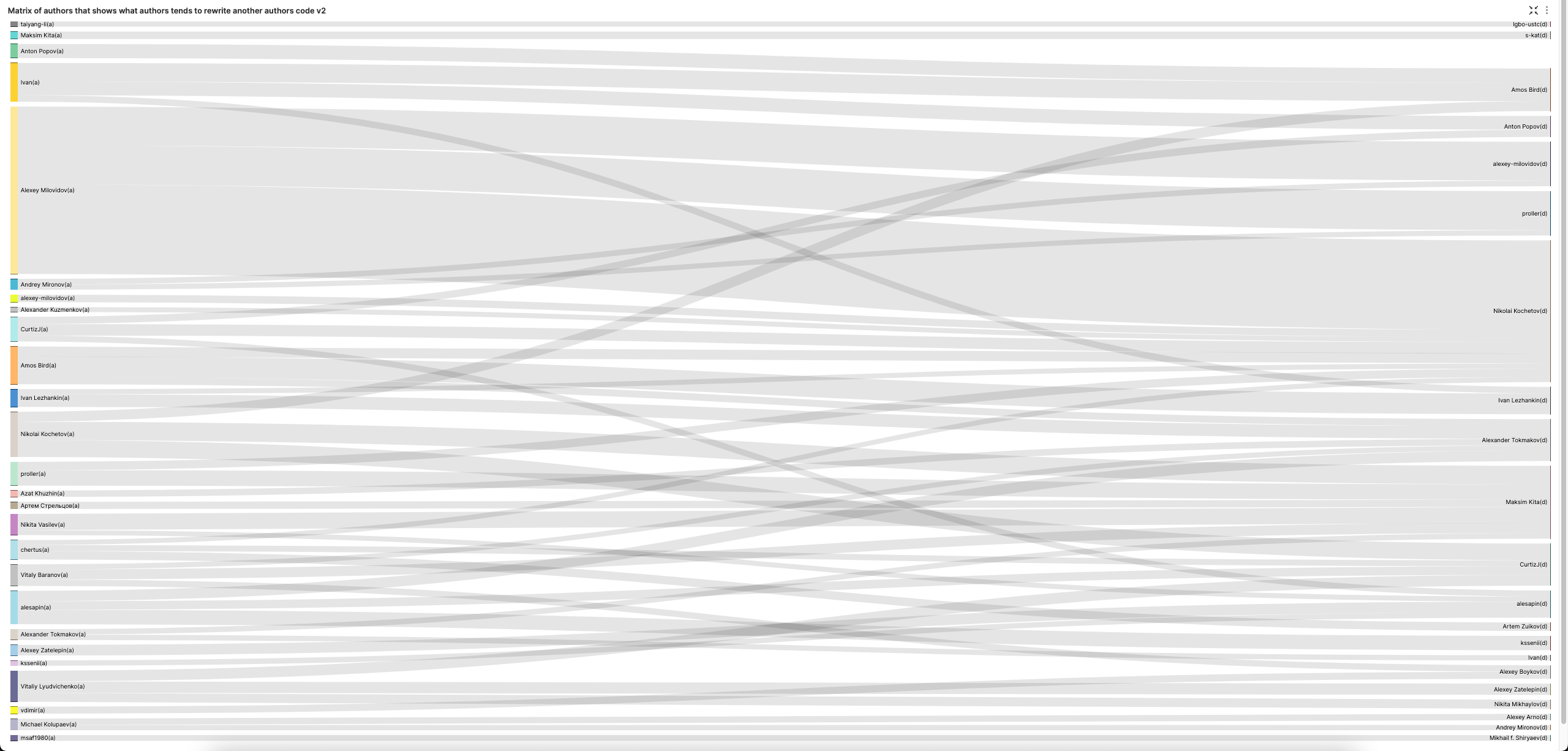

Alexey 显然很喜欢删除别人的代码。我们把他排除在外，以获得更均衡的代码删除视角。
按一周中的每一天来看，谁是贡献占比最高的提交者？
如果我们只按提交次数来考虑：
SELECT
day_of_week,
author,
count() AS c
FROM git.commits
GROUP BY
dayOfWeek(time) AS day_of_week,
author
ORDER BY
day_of_week ASC,
c DESC
LIMIT 1 BY day_of_week
┌─day_of_week─┬─author───────────┬────c─┐
│ 1 │ Alexey Milovidov │ 2204 │
│ 2 │ Alexey Milovidov │ 1588 │
│ 3 │ Alexey Milovidov │ 1725 │
│ 4 │ Alexey Milovidov │ 1915 │
│ 5 │ Alexey Milovidov │ 1940 │
│ 6 │ Alexey Milovidov │ 1851 │
│ 7 │ Alexey Milovidov │ 2400 │
└─────────────┴──────────────────┴──────┘
7 行数据。耗时: 0.012 秒。处理了 62.78 千行，395.47 KB (5.44 百万行/秒，34.27 MB/秒)
好吧，这里对资历最深的贡献者——我们的创始人 Alexey——来说可能有一些优势。我们把分析范围限定在过去一年。
SELECT
day_of_week,
author,
count() AS c
FROM git.commits
WHERE time > (now() - toIntervalYear(1))
GROUP BY
dayOfWeek(time) AS day_of_week,
author
ORDER BY
day_of_week ASC,
c DESC
LIMIT 1 BY day_of_week
┌─day_of_week─┬─author───────────┬───c─┐
│ 1 │ Alexey Milovidov │ 198 │
│ 2 │ alesapin │ 162 │
│ 3 │ alesapin │ 163 │
│ 4 │ Azat Khuzhin │ 166 │
│ 5 │ alesapin │ 191 │
│ 6 │ Alexey Milovidov │ 179 │
│ 7 │ Alexey Milovidov │ 243 │
└─────────────┴──────────────────┴─────┘
返回 7 行。耗时:0.004 秒。已处理 21.82 千行,140.02 KB(488 万行/秒,31.29 MB/秒)
这仍然有点简单，并不能很好地反映人们的实际工作。
一个更好的指标可能是：在过去一年完成的全部工作量中，统计每天的头号贡献者及其所占比例。请注意，我们将删除代码和新增代码视为同等的工作量。
SELECT
top_author.day_of_week,
top_author.author,
top_author.author_work / all_work.total_work AS top_author_percent
FROM
(
SELECT
day_of_week,
author,
sum(lines_added) + sum(lines_deleted) AS author_work
FROM git.file_changes
WHERE time > (now() - toIntervalYear(1))
GROUP BY
author,
dayOfWeek(time) AS day_of_week
ORDER BY
day_of_week ASC,
author_work DESC
LIMIT 1 BY day_of_week
) AS top_author
INNER JOIN
(
SELECT
day_of_week,
sum(lines_added) + sum(lines_deleted) AS total_work
FROM git.file_changes
WHERE time > (now() - toIntervalYear(1))
GROUP BY dayOfWeek(time) AS day_of_week
) AS all_work USING (day_of_week)
┌─day_of_week─┬─author──────────────┬──top_author_percent─┐
│ 1 │ Alexey Milovidov │ 0.3168282877768332 │
│ 2 │ Mikhail f. Shiryaev │ 0.3523434231193969 │
│ 3 │ vdimir │ 0.11859742484577324 │
│ 4 │ Nikolay Degterinsky │ 0.34577318920318467 │
│ 5 │ Alexey Milovidov │ 0.13208704423684223 │
│ 6 │ Alexey Milovidov │ 0.18895257783624633 │
│ 7 │ Robert Schulze │ 0.3617405888930302 │
└─────────────┴─────────────────────┴─────────────────────┘
7 rows in set. Elapsed: 0.014 sec. Processed 106.12 thousand rows, 1.38 MB (7.61 million rows/s., 98.65 MB/s.)
仓库中代码年龄分布
我们将分析范围限定为当前存在的文件。为简洁起见，将结果限制为目录深度为 2，且每个根目录下最多展示 5 个文件。可根据需要进行调整。
WITH current_files AS
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND (NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)'))
ORDER BY path ASC
)
SELECT
concat(root, '/', sub_folder) AS folder,
round(avg(days_present)) AS avg_age_of_files,
min(days_present) AS min_age_files,
max(days_present) AS max_age_files,
count() AS c
FROM
(
SELECT
path,
dateDiff('day', min(time), toDate('2022-11-03')) AS days_present
FROM git.file_changes
WHERE (path IN (current_files)) AND (file_extension IN ('h', 'cpp', 'sql'))
GROUP BY path
)
GROUP BY
splitByChar('/', path)[1] AS root,
splitByChar('/', path)[2] AS sub_folder
ORDER BY
root ASC,
c DESC
LIMIT 5 BY root
┌─folder───────────────────────────┬─avg_age_of_files─┬─min_age_files─┬─max_age_files─┬────c─┐
│ base/base │ 387 │ 201 │ 397 │ 84 │
│ base/glibc-compatibility │ 887 │ 59 │ 993 │ 19 │
│ base/consistent-hashing │ 993 │ 993 │ 993 │ 5 │
│ base/widechar_width │ 993 │ 993 │ 993 │ 2 │
│ base/consistent-hashing-sumbur │ 993 │ 993 │ 993 │ 2 │
│ docker/test │ 1043 │ 1043 │ 1043 │ 1 │
│ programs/odbc-bridge │ 835 │ 91 │ 945 │ 25 │
│ programs/copier │ 587 │ 14 │ 945 │ 22 │
│ programs/library-bridge │ 155 │ 47 │ 608 │ 21 │
│ programs/disks │ 144 │ 62 │ 150 │ 14 │
│ programs/server │ 874 │ 709 │ 945 │ 10 │
│ rust/BLAKE3 │ 52 │ 52 │ 52 │ 1 │
│ src/Functions │ 752 │ 0 │ 944 │ 809 │
│ src/Storages │ 700 │ 8 │ 944 │ 736 │
│ src/Interpreters │ 684 │ 3 │ 944 │ 490 │
│ src/Processors │ 703 │ 44 │ 944 │ 482 │
│ src/Common │ 673 │ 7 │ 944 │ 473 │
│ tests/queries │ 674 │ -5 │ 945 │ 3777 │
│ tests/integration │ 656 │ 132 │ 945 │ 4 │
│ utils/memcpy-bench │ 601 │ 599 │ 605 │ 10 │
│ utils/keeper-bench │ 570 │ 569 │ 570 │ 7 │
│ utils/durability-test │ 793 │ 793 │ 793 │ 4 │
│ utils/self-extracting-executable │ 143 │ 143 │ 143 │ 3 │
│ utils/self-extr-exec │ 224 │ 224 │ 224 │ 2 │
└──────────────────────────────────┴──────────────────┴───────────────┴───────────────┴──────┘
返回 24 行。用时:0.129 秒。处理了 79.815 万行,15.11 MB(619 万行/秒,117.08 MB/秒)。
某位作者的代码中，有多少百分比被其他作者删除？
对于这个问题，我们需要将某位作者编写的代码行数，除以该作者被其他贡献者删除的代码总行数。
SELECT
k,
written_code.c,
removed_code.c,
removed_code.c / written_code.c AS remove_ratio
FROM
(
SELECT
author AS k,
count() AS c
FROM git.line_changes
WHERE (sign = 1) AND (file_extension IN ('h', 'cpp')) AND (line_type NOT IN ('Punct', 'Empty'))
GROUP BY k
) AS written_code
INNER JOIN
(
SELECT
prev_author AS k,
count() AS c
FROM git.line_changes
WHERE (sign = -1) AND (file_extension IN ('h', 'cpp')) AND (line_type NOT IN ('Punct', 'Empty')) AND (author != prev_author)
GROUP BY k
) AS removed_code USING (k)
WHERE written_code.c > 1000
ORDER BY remove_ratio DESC
LIMIT 10
┌─k──────────────────┬─────c─┬─removed_code.c─┬───────remove_ratio─┐
│ Marek Vavruša │ 1458 │ 1318 │ 0.9039780521262003 │
│ Ivan │ 32715 │ 27500 │ 0.8405930001528351 │
│ artpaul │ 3450 │ 2840 │ 0.8231884057971014 │
│ Silviu Caragea │ 1542 │ 1209 │ 0.7840466926070039 │
│ Ruslan │ 1027 │ 802 │ 0.7809152872444012 │
│ Tsarkova Anastasia │ 1755 │ 1364 │ 0.7772079772079772 │
│ Vyacheslav Alipov │ 3526 │ 2727 │ 0.7733976176971072 │
│ Marek Vavruša │ 1467 │ 1124 │ 0.7661895023858214 │
│ f1yegor │ 7194 │ 5213 │ 0.7246316374756742 │
│ kreuzerkrieg │ 3406 │ 2468 │ 0.724603640634175 │
└────────────────────┴───────┴────────────────┴────────────────────┘
返回 10 行。用时:0.126 秒。已处理 1507 万行,73.51 MB(119.97 百万行/秒,585.16 MB/秒)
列出被重写次数最多的文件
对于这个问题，最简单的方法可能是按文件路径统计行修改次数（仅限当前仍存在的文件），例如：
WITH current_files AS
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND (NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)'))
ORDER BY path ASC
)
SELECT
path,
count() AS c
FROM git.line_changes
WHERE (file_extension IN ('h', 'cpp', 'sql')) AND (path IN (current_files))
GROUP BY path
ORDER BY c DESC
LIMIT 10
┌─path───────────────────────────────────────────────────┬─────c─┐
│ src/Storages/StorageReplicatedMergeTree.cpp │ 21871 │
│ src/Storages/MergeTree/MergeTreeData.cpp │ 17709 │
│ programs/client/Client.cpp │ 15882 │
│ src/Storages/MergeTree/MergeTreeDataSelectExecutor.cpp │ 14249 │
│ src/Interpreters/InterpreterSelectQuery.cpp │ 12636 │
│ src/Parsers/ExpressionListParsers.cpp │ 11794 │
│ src/Analyzer/QueryAnalysisPass.cpp │ 11760 │
│ src/Coordination/KeeperStorage.cpp │ 10225 │
│ src/Functions/FunctionsConversion.h │ 9247 │
│ src/Parsers/ExpressionElementParsers.cpp │ 8197 │
└────────────────────────────────────────────────────────┴───────┘
返回 10 行。用时:0.160 秒。已处理 807 万行,98.99 MB(5049 万行/秒,619.49 MB/秒)。
不过，这还没有体现出“重写（re-write）”这一概念，即在一次提交中，文件有大部分内容发生变化的情况。为此需要一个更复杂的查询。假定我们将“重写”定义为：超过 50% 的行被删除，且超过 50% 的行被新增。你可以根据自己对“重写”的理解调整查询条件。
该查询仅针对当前仍存在的文件。我们通过按 path 和 commit_hash 分组列出所有文件变更，并返回新增和删除的行数。借助窗口函数，我们在任意时间点通过累积和来估算文件的总大小，并将每次变更对文件大小的影响估算为 lines added - lines removed。基于这一统计量，我们可以计算每次变更中被新增或删除的内容占该文件的百分比。最后，我们统计每个文件中满足“重写”条件的变更次数，即 (percent_add >= 0.5) AND (percent_delete >= 0.5) AND current_size > 50。注意，我们要求文件长度超过 50 行，以避免文件早期的小规模改动被计为重写。这也避免了对非常小的文件产生偏差，因为这类文件更有可能被完全重写。
WITH
current_files AS
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND (NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)'))
ORDER BY path ASC
),
changes AS
(
SELECT
path,
max(time) AS max_time,
commit_hash,
any(lines_added) AS num_added,
any(lines_deleted) AS num_deleted,
any(change_type) AS type
FROM git.file_changes
WHERE (change_type IN ('Add', 'Modify')) AND (path IN (current_files)) AND (file_extension IN ('h', 'cpp', 'sql'))
GROUP BY
path,
commit_hash
ORDER BY
path ASC,
max_time ASC
),
rewrites AS
(
SELECT
path,
commit_hash,
max_time,
type,
num_added,
num_deleted,
sum(num_added - num_deleted) OVER (PARTITION BY path ORDER BY max_time ASC) AS current_size,
if(current_size > 0, num_added / current_size, 0) AS percent_add,
if(current_size > 0, num_deleted / current_size, 0) AS percent_delete
FROM changes
)
SELECT
path,
count() AS num_rewrites
FROM rewrites
WHERE (type = 'Modify') AND (percent_add >= 0.5) AND (percent_delete >= 0.5) AND (current_size > 50)
GROUP BY path
ORDER BY num_rewrites DESC
LIMIT 10
┌─path──────────────────────────────────────────────────┬─num_rewrites─┐
│ src/Storages/WindowView/StorageWindowView.cpp │ 8 │
│ src/Functions/array/arrayIndex.h │ 7 │
│ src/Dictionaries/CacheDictionary.cpp │ 6 │
│ src/Dictionaries/RangeHashedDictionary.cpp │ 5 │
│ programs/client/Client.cpp │ 4 │
│ src/Functions/polygonPerimeter.cpp │ 4 │
│ src/Functions/polygonsEquals.cpp │ 4 │
│ src/Functions/polygonsWithin.cpp │ 4 │
│ src/Processors/Formats/Impl/ArrowColumnToCHColumn.cpp │ 4 │
│ src/Functions/polygonsSymDifference.cpp │ 4 │
└───────────────────────────────────────────────────────┴──────────────┘
10 行数据。耗时: 0.299 秒。处理了 798.15 千行，31.52 MB (2.67 百万行/秒，105.29 MB/秒)。
在一周中的哪一天，代码留存在代码库中的概率最高？
为此，我们需要对每一行代码进行唯一标识。由于同一行可能在一个文件中出现多次，我们通过文件路径和该行的内容来进行估算。
我们先查询新增的代码行，再与被删除的代码行进行关联，并过滤出删除时间晚于添加时间的情况。这样就得到了被删除的代码行，从中可以计算这两个事件之间的时间间隔。
最后，我们在整个数据集上聚合，按星期几统计代码行在代码库中停留的平均天数。
SELECT
day_of_week_added,
count() AS num,
avg(days_present) AS avg_days_present
FROM
(
SELECT
added_code.line,
added_code.time AS added_day,
dateDiff('day', added_code.time, removed_code.time) AS days_present
FROM
(
SELECT
path,
line,
max(time) AS time
FROM git.line_changes
WHERE (sign = 1) AND (line_type NOT IN ('Punct', 'Empty'))
GROUP BY
path,
line
) AS added_code
INNER JOIN
(
SELECT
path,
line,
max(time) AS time
FROM git.line_changes
WHERE (sign = -1) AND (line_type NOT IN ('Punct', 'Empty'))
GROUP BY
path,
line
) AS removed_code USING (path, line)
WHERE removed_code.time > added_code.time
)
GROUP BY dayOfWeek(added_day) AS day_of_week_added
┌─day_of_week_added─┬────num─┬───avg_days_present─┐
│ 1 │ 171879 │ 193.81759260875384 │
│ 2 │ 141448 │ 153.0931013517335 │
│ 3 │ 161230 │ 137.61553681076722 │
│ 4 │ 255728 │ 121.14149799787273 │
│ 5 │ 203907 │ 141.60181847606998 │
│ 6 │ 62305 │ 202.43449161383518 │
│ 7 │ 70904 │ 220.0266134491707 │
└───────────────────┴────────┴────────────────────┘
7 rows in set. Elapsed: 3.965 sec. Processed 15.07 million rows, 1.92 GB (3.80 million rows/s., 483.50 MB/s.)
按平均代码年龄排序的文件
此查询使用与代码在仓库中保留概率最高的是一周中的哪一天相同的原理——通过路径和行内容来唯一标识一行代码。 这使我们能够识别一行代码从被添加到被删除之间的时间。我们仅筛选当前仍存在的文件和代码，并对每个文件内所有代码行的时间进行平均。
WITH
current_files AS
(
SELECT path
FROM
(
SELECT
old_path AS path,
max(time) AS last_time,
2 AS change_type
FROM git.file_changes
GROUP BY old_path
UNION ALL
SELECT
path,
max(time) AS last_time,
argMax(change_type, time) AS change_type
FROM git.clickhouse_file_changes
GROUP BY path
)
GROUP BY path
HAVING (argMax(change_type, last_time) != 2) AND (NOT match(path, '(^dbms/)|(^libs/)|(^tests/testflows/)|(^programs/server/store/)'))
ORDER BY path ASC
),
lines_removed AS
(
SELECT
added_code.path AS path,
added_code.line,
added_code.time AS added_day,
dateDiff('day', added_code.time, removed_code.time) AS days_present
FROM
(
SELECT
path,
line,
max(time) AS time,
any(file_extension) AS file_extension
FROM git.line_changes
WHERE (sign = 1) AND (line_type NOT IN ('Punct', 'Empty'))
GROUP BY
path,
line
) AS added_code
INNER JOIN
(
SELECT
path,
line,
max(time) AS time
FROM git.line_changes
WHERE (sign = -1) AND (line_type NOT IN ('Punct', 'Empty'))
GROUP BY
path,
line
) AS removed_code USING (path, line)
WHERE (removed_code.time > added_code.time) AND (path IN (current_files)) AND (file_extension IN ('h', 'cpp', 'sql'))
)
SELECT
path,
avg(days_present) AS avg_code_age
FROM lines_removed
GROUP BY path
ORDER BY avg_code_age DESC
LIMIT 10
┌─path────────────────────────────────────────────────────────────┬──────avg_code_age─┐
│ utils/corrector_utf8/corrector_utf8.cpp │ 1353.888888888889 │
│ tests/queries/0_stateless/01288_shard_max_network_bandwidth.sql │ 881 │
│ src/Functions/replaceRegexpOne.cpp │ 861 │
│ src/Functions/replaceRegexpAll.cpp │ 861 │
│ src/Functions/replaceOne.cpp │ 861 │
│ utils/zookeeper-remove-by-list/main.cpp │ 838.25 │
│ tests/queries/0_stateless/01356_state_resample.sql │ 819 │
│ tests/queries/0_stateless/01293_create_role.sql │ 819 │
│ src/Functions/ReplaceStringImpl.h │ 810 │
│ src/Interpreters/createBlockSelector.cpp │ 795 │
└─────────────────────────────────────────────────────────────────┴───────────────────┘
返回 10 行。用时:3.134 秒。已处理 1613 万行,1.83 GB(515 万行/秒,582.99 MB/秒)。
谁更倾向于编写更多的测试 / CPP 代码 / 注释？
我们可以用几种方式来回答这个问题。若聚焦于代码与测试的比例，这个查询相对简单——统计对包含 tests 的文件夹的贡献次数，并计算其占总贡献次数的比例。
请注意，我们只统计更改次数超过 20 次的用户，以聚焦于常规提交者，并避免一次性贡献带来的偏差。
SELECT
author,
countIf((file_extension IN ('h', 'cpp', 'sql', 'sh', 'py', 'expect')) AND (path LIKE '%tests%')) AS test,
countIf((file_extension IN ('h', 'cpp', 'sql')) AND (NOT (path LIKE '%tests%'))) AS code,
code / (code + test) AS ratio_code
FROM git.clickhouse_file_changes
GROUP BY author
HAVING code > 20
ORDER BY code DESC
LIMIT 20
┌─author───────────────┬─test─┬──code─┬─────────ratio_code─┐
│ Alexey Milovidov │ 6617 │ 41799 │ 0.8633303040317251 │
│ Nikolai Kochetov │ 916 │ 13361 │ 0.9358408629263851 │
│ alesapin │ 2408 │ 8796 │ 0.785076758300607 │
│ kssenii │ 869 │ 6769 │ 0.8862267609321812 │
│ Maksim Kita │ 799 │ 5862 │ 0.8800480408347096 │
│ Alexander Tokmakov │ 1472 │ 5727 │ 0.7955271565495208 │
│ Vitaly Baranov │ 1764 │ 5521 │ 0.7578586135895676 │
│ Ivan Lezhankin │ 843 │ 4698 │ 0.8478613968597726 │
│ Anton Popov │ 599 │ 4346 │ 0.8788675429726996 │
│ Ivan │ 2630 │ 4269 │ 0.6187853312074214 │
│ Azat Khuzhin │ 1664 │ 3697 │ 0.689610147360567 │
│ Amos Bird │ 400 │ 2901 │ 0.8788245986064829 │
│ proller │ 1207 │ 2377 │ 0.6632254464285714 │
│ chertus │ 453 │ 2359 │ 0.8389046941678521 │
│ alexey-milovidov │ 303 │ 2321 │ 0.8845274390243902 │
│ Alexey Arno │ 169 │ 2310 │ 0.9318273497377975 │
│ Vitaliy Lyudvichenko │ 334 │ 2283 │ 0.8723729461215132 │
│ Robert Schulze │ 182 │ 2196 │ 0.9234650967199327 │
│ CurtizJ │ 460 │ 2158 │ 0.8242933537051184 │
│ Alexander Kuzmenkov │ 298 │ 2092 │ 0.8753138075313808 │
└──────────────────────┴──────┴───────┴────────────────────┘
返回 20 行。用时:0.034 秒。已处理 26.605 万行,4.65 MB(793 万行/秒,138.76 MB/秒)。
我们可以将此分布绘制成直方图。
WITH (
SELECT histogram(10)(ratio_code) AS hist
FROM
(
SELECT
author,
countIf((file_extension IN ('h', 'cpp', 'sql', 'sh', 'py', 'expect')) AND (path LIKE '%tests%')) AS test,
countIf((file_extension IN ('h', 'cpp', 'sql')) AND (NOT (path LIKE '%tests%'))) AS code,
code / (code + test) AS ratio_code
FROM git.clickhouse_file_changes
GROUP BY author
HAVING code > 20
ORDER BY code DESC
LIMIT 20
)
) AS hist
SELECT
arrayJoin(hist).1 AS lower,
arrayJoin(hist).2 AS upper,
bar(arrayJoin(hist).3, 0, 100, 500) AS bar
┌──────────────lower─┬──────────────upper─┬─bar───────────────────────────┐
│ 0.6187853312074214 │ 0.6410053888179964 │ █████ │
│ 0.6410053888179964 │ 0.6764177968945693 │ █████ │
│ 0.6764177968945693 │ 0.7237343804750673 │ █████ │
│ 0.7237343804750673 │ 0.7740802855073157 │ █████▋ │
│ 0.7740802855073157 │ 0.807297655565091 │ ████████▋ │
│ 0.807297655565091 │ 0.8338381996094653 │ ██████▎ │
│ 0.8338381996094653 │ 0.8533566747727687 │ ████████▋ │
│ 0.8533566747727687 │ 0.871392376017531 │ █████████▍ │
│ 0.871392376017531 │ 0.904916108899021 │ ████████████████████████████▋ │
│ 0.904916108899021 │ 0.9358408629263851 │ █████████████████▌ │
└────────────────────┴────────────────────┴───────────────────────────────┘
10 rows in set. Elapsed: 0.051 sec. Processed 266.05 thousand rows, 4.65 MB (5.24 million rows/s., 91.64 MB/s.)
正如预期的那样，大多数贡献者写的代码都比测试多。
那么，在贡献代码时，谁添加的注释最多呢？
SELECT
author,
avg(ratio_comments) AS avg_ratio_comments,
sum(code) AS code
FROM
(
SELECT
author,
commit_hash,
countIf(line_type = 'Comment') AS comments,
countIf(line_type = 'Code') AS code,
if(comments > 0, comments / (comments + code), 0) AS ratio_comments
FROM git.clickhouse_line_changes
GROUP BY
author,
commit_hash
)
GROUP BY author
ORDER BY code DESC
LIMIT 10
┌─author─────────────┬──avg_ratio_comments─┬────code─┐
│ Alexey Milovidov │ 0.1034915408309902 │ 1147196 │
│ s-kat │ 0.1361718900215362 │ 614224 │
│ Nikolai Kochetov │ 0.08722993407690126 │ 218328 │
│ alesapin │ 0.1040477684726504 │ 198082 │
│ Vitaly Baranov │ 0.06446875712939285 │ 161801 │
│ Maksim Kita │ 0.06863376297549255 │ 156381 │
│ Alexey Arno │ 0.11252677608033655 │ 146642 │
│ Vitaliy Zakaznikov │ 0.06199215397180561 │ 138530 │
│ kssenii │ 0.07455322590796751 │ 131143 │
│ Artur │ 0.12383737231074826 │ 121484 │
└────────────────────┴─────────────────────┴─────────┘
返回 10 行。用时:0.290 秒。已处理 754 万行,394.57 MB(2600 万行/秒,1.36 GB/秒)
请注意，我们是按代码贡献排序的。对于所有主要贡献者来说，这个比例都出奇地高，这也是我们代码之所以如此易读的原因之一。
不同作者的提交中代码/注释比例随时间如何变化？
按作者维度计算这个指标非常简单，
SELECT
author,
countIf(line_type = 'Code') AS code_lines,
countIf((line_type = 'Comment') OR (line_type = 'Punct')) AS comments,
code_lines / (comments + code_lines) AS ratio_code,
toStartOfWeek(time) AS week
FROM git.line_changes
GROUP BY
time,
author
ORDER BY
author ASC,
time ASC
LIMIT 10
┌─author──────────────────────┬─code_lines─┬─comments─┬─────────ratio_code─┬───────week─┐
│ 1lann │ 8 │ 0 │ 1 │ 2022-03-06 │
│ 20018712 │ 2 │ 0 │ 1 │ 2020-09-13 │
│ 243f6a8885a308d313198a2e037 │ 0 │ 2 │ 0 │ 2020-12-06 │
│ 243f6a8885a308d313198a2e037 │ 0 │ 112 │ 0 │ 2020-12-06 │
│ 243f6a8885a308d313198a2e037 │ 0 │ 14 │ 0 │ 2020-12-06 │
│ 3ldar-nasyrov │ 2 │ 0 │ 1 │ 2021-03-14 │
│ [email protected] │ 27 │ 2 │ 0.9310344827586207 │ 2019-04-21 │
│ ANDREI STAROVEROV │ 182 │ 60 │ 0.7520661157024794 │ 2021-05-09 │
│ ANDREI STAROVEROV │ 7 │ 0 │ 1 │ 2021-05-09 │
│ ANDREI STAROVEROV │ 32 │ 12 │ 0.7272727272727273 │ 2021-05-09 │
└─────────────────────────────┴────────────┴──────────┴────────────────────┴────────────┘
返回 10 行。用时:0.145 秒。已处理 754 万行,51.09 MB(每秒 5183 万行,351.44 MB/秒)。
不过，在理想情况下，我们希望从作者开始提交的第一天算起，按所有作者的整体情况来看这一变化。他们会逐渐减少自己编写的注释数量吗？
为此，我们首先计算每位作者随时间变化的注释占比——类似于 Who tends to write more tests / CPP code / comments?。然后将其与每位作者的起始日期进行关联，从而可以按周偏移量计算注释占比。
在计算出所有作者按周偏移量的平均值之后，我们通过每隔 10 周选取一次的方式对这些结果进行抽样。
WITH author_ratios_by_offset AS
(
SELECT
author,
dateDiff('week', start_dates.start_date, contributions.week) AS week_offset,
ratio_code
FROM
(
SELECT
author,
toStartOfWeek(min(time)) AS start_date
FROM git.line_changes
WHERE file_extension IN ('h', 'cpp', 'sql')
GROUP BY author AS start_dates
) AS start_dates
INNER JOIN
(
SELECT
author,
countIf(line_type = 'Code') AS code,
countIf((line_type = 'Comment') OR (line_type = 'Punct')) AS comments,
comments / (comments + code) AS ratio_code,
toStartOfWeek(time) AS week
FROM git.line_changes
WHERE (file_extension IN ('h', 'cpp', 'sql')) AND (sign = 1)
GROUP BY
time,
author
HAVING code > 20
ORDER BY
author ASC,
time ASC
) AS contributions USING (author)
)
SELECT
week_offset,
avg(ratio_code) AS avg_code_ratio
FROM author_ratios_by_offset
GROUP BY week_offset
HAVING (week_offset % 10) = 0
ORDER BY week_offset ASC
LIMIT 20
┌─week_offset─┬──────avg_code_ratio─┐
│ 0 │ 0.21626798253005078 │
│ 10 │ 0.18299433892099454 │
│ 20 │ 0.22847255749045017 │
│ 30 │ 0.2037816688365288 │
│ 40 │ 0.1987063517030308 │
│ 50 │ 0.17341406302829748 │
│ 60 │ 0.1808884776496144 │
│ 70 │ 0.18711773536450496 │
│ 80 │ 0.18905573684766458 │
│ 90 │ 0.2505147771581594 │
│ 100 │ 0.2427673990917429 │
│ 110 │ 0.19088569009169926 │
│ 120 │ 0.14218574654598348 │
│ 130 │ 0.20894252550489317 │
│ 140 │ 0.22316626978848397 │
│ 150 │ 0.1859507592277053 │
│ 160 │ 0.22007759757363546 │
│ 170 │ 0.20406936638195144 │
│ 180 │ 0.1412102467834332 │
│ 190 │ 0.20677550885049117 │
└─────────────┴─────────────────────┘
返回 20 行。用时:0.167 秒。处理了 1507 万行,101.74 MB(每秒 9051 万行,610.98 MB/秒)。
令人鼓舞的是，我们的评论比例相当稳定，并不会随着作者贡献时间的增加而下降。
代码在被重写之前的平均时间是多少？中位数（代码衰减的“半衰期”）又是多少？
我们可以使用与列出被重写次数最多或被最多作者重写的文件相同的原则来识别重写行为，但这次针对所有文件。使用窗口函数计算每个文件两次重写之间的时间间隔，在此基础上，我们可以计算所有文件整体的平均值和中位数。
WITH
changes AS
(
SELECT
path,
commit_hash,
max_time,
type,
num_added,
num_deleted,
sum(num_added - num_deleted) OVER (PARTITION BY path ORDER BY max_time ASC) AS current_size,
if(current_size > 0, num_added / current_size, 0) AS percent_add,
if(current_size > 0, num_deleted / current_size, 0) AS percent_delete
FROM
(
SELECT
path,
max(time) AS max_time,
commit_hash,
any(lines_added) AS num_added,
any(lines_deleted) AS num_deleted,
any(change_type) AS type
FROM git.file_changes
WHERE (change_type IN ('Add', 'Modify')) AND (file_extension IN ('h', 'cpp', 'sql'))
GROUP BY
path,
commit_hash
ORDER BY
path ASC,
max_time ASC
)
),
rewrites AS
(
SELECT
*,
any(max_time) OVER (PARTITION BY path ORDER BY max_time ASC ROWS BETWEEN 1 PRECEDING AND CURRENT ROW) AS previous_rewrite,
dateDiff('day', previous_rewrite, max_time) AS rewrite_days
FROM changes
WHERE (type = 'Modify') AND (percent_add >= 0.5) AND (percent_delete >= 0.5) AND (current_size > 50)
)
SELECT
avgIf(rewrite_days, rewrite_days > 0) AS avg_rewrite_time,
quantilesTimingIf(0.5)(rewrite_days, rewrite_days > 0) AS half_life
FROM rewrites
┌─avg_rewrite_time─┬─half_life─┐
│ 122.2890625 │ [23] │
└──────────────────┴───────────┘
1 row in set. Elapsed: 0.388 sec. Processed 266.05 thousand rows, 22.85 MB (685.82 thousand rows/s., 58.89 MB/s.)
从代码最有可能被重写的角度来看，什么时候写代码是最“糟糕”的？
类似于 What is the average time before code will be rewritten and the median (half-life of code decay)? 和 List files that were rewritten most number of time or by most of authors，只是这里我们按一周中的星期几进行聚合。可按需要进行调整，例如按一年中的月份。
WITH
changes AS
(
SELECT
path,
commit_hash,
max_time,
type,
num_added,
num_deleted,
sum(num_added - num_deleted) OVER (PARTITION BY path ORDER BY max_time ASC) AS current_size,
if(current_size > 0, num_added / current_size, 0) AS percent_add,
if(current_size > 0, num_deleted / current_size, 0) AS percent_delete
FROM
(
SELECT
path,
max(time) AS max_time,
commit_hash,
any(file_lines_added) AS num_added,
any(file_lines_deleted) AS num_deleted,
any(file_change_type) AS type
FROM git.line_changes
WHERE (file_change_type IN ('Add', 'Modify')) AND (file_extension IN ('h', 'cpp', 'sql'))
GROUP BY
path,
commit_hash
ORDER BY
path ASC,
max_time ASC
)
),
rewrites AS
(
SELECT any(max_time) OVER (PARTITION BY path ORDER BY max_time ASC ROWS BETWEEN 1 PRECEDING AND CURRENT ROW) AS previous_rewrite
FROM changes
WHERE (type = 'Modify') AND (percent_add >= 0.5) AND (percent_delete >= 0.5) AND (current_size > 50)
)
SELECT
dayOfWeek(previous_rewrite) AS dayOfWeek,
count() AS num_re_writes
FROM rewrites
GROUP BY dayOfWeek
┌─dayOfWeek─┬─num_re_writes─┐
│ 1 │ 111 │
│ 2 │ 121 │
│ 3 │ 91 │
│ 4 │ 111 │
│ 5 │ 90 │
│ 6 │ 64 │
│ 7 │ 46 │
└───────────┴───────────────┘
返回 7 行。用时:0.466 秒。已处理 754 万行,701.52 MB(1615 万行/秒,1.50 GB/秒)
哪位作者的代码「黏性」最高？
我们将「黏性」定义为：一位作者的代码在被重写之前能保留多长时间。类似于前一个问题 代码在被重写前的平均时间是多少？以及中位数（代码衰减的半衰期）？ —— 使用相同的重写度量方式，即文件中有 50% 的内容为新增、50% 为删除。我们按作者计算平均重写时间，并且只考虑在超过两个文件上有贡献的作者。
WITH
changes AS
(
SELECT
path,
author,
commit_hash,
max_time,
type,
num_added,
num_deleted,
sum(num_added - num_deleted) OVER (PARTITION BY path ORDER BY max_time ASC) AS current_size,
if(current_size > 0, num_added / current_size, 0) AS percent_add,
if(current_size > 0, num_deleted / current_size, 0) AS percent_delete
FROM
(
SELECT
path,
any(author) AS author,
max(time) AS max_time,
commit_hash,
any(file_lines_added) AS num_added,
any(file_lines_deleted) AS num_deleted,
any(file_change_type) AS type
FROM git.line_changes
WHERE (file_change_type IN ('Add', 'Modify')) AND (file_extension IN ('h', 'cpp', 'sql'))
GROUP BY
path,
commit_hash
ORDER BY
path ASC,
max_time ASC
)
),
rewrites AS
(
SELECT
*,
any(max_time) OVER (PARTITION BY path ORDER BY max_time ASC ROWS BETWEEN 1 PRECEDING AND CURRENT ROW) AS previous_rewrite,
dateDiff('day', previous_rewrite, max_time) AS rewrite_days,
any(author) OVER (PARTITION BY path ORDER BY max_time ASC ROWS BETWEEN 1 PRECEDING AND CURRENT ROW) AS prev_author
FROM changes
WHERE (type = 'Modify') AND (percent_add >= 0.5) AND (percent_delete >= 0.5) AND (current_size > 50)
)
SELECT
prev_author,
avg(rewrite_days) AS c,
uniq(path) AS num_files
FROM rewrites
GROUP BY prev_author
HAVING num_files > 2
ORDER BY c DESC
LIMIT 10
┌─prev_author─────────┬──────────────────c─┬─num_files─┐
│ Michael Kolupaev │ 304.6 │ 4 │
│ alexey-milovidov │ 81.83333333333333 │ 4 │
│ Alexander Kuzmenkov │ 64.5 │ 5 │
│ Pavel Kruglov │ 55.8 │ 6 │
│ Alexey Milovidov │ 48.416666666666664 │ 90 │
│ Amos Bird │ 42.8 │ 4 │
│ alesapin │ 38.083333333333336 │ 12 │
│ Nikolai Kochetov │ 33.18421052631579 │ 26 │
│ Alexander Tokmakov │ 31.866666666666667 │ 12 │
│ Alexey Zatelepin │ 22.5 │ 4 │
└─────────────────────┴────────────────────┴───────────┘
10 rows in set. Elapsed: 0.555 sec. Processed 7.54 million rows, 720.60 MB (13.58 million rows/s., 1.30 GB/s.)
作者连续提交天数最多
此查询首先需要计算每位作者在哪些日期进行了提交。使用按作者分区的窗口函数，我们可以计算各次提交之间相隔的天数。对于每次提交，如果距离上一次提交相隔 1 天，则将其标记为连续（1），否则为 0，并将这一结果存入 consecutive_day。
接下来使用数组函数来计算每位作者最长的连续 1 序列。首先，使用 groupArray 函数收集某位作者的所有 consecutive_day 值。然后，将这个由 1 和 0 组成的数组按 0 进行拆分，得到多个子数组。最后，我们计算其中长度最大的子数组。
WITH commit_days AS
(
SELECT
author,
day,
any(day) OVER (PARTITION BY author ORDER BY day ASC ROWS BETWEEN 1 PRECEDING AND CURRENT ROW) AS previous_commit,
dateDiff('day', previous_commit, day) AS days_since_last,
if(days_since_last = 1, 1, 0) AS consecutive_day
FROM
(
SELECT
author,
toStartOfDay(time) AS day
FROM git.commits
GROUP BY
author,
day
ORDER BY
author ASC,
day ASC
)
)
SELECT
author,
arrayMax(arrayMap(x -> length(x), arraySplit(x -> (x = 0), groupArray(consecutive_day)))) - 1 AS max_consecutive_days
FROM commit_days
GROUP BY author
ORDER BY max_consecutive_days DESC
LIMIT 10
┌─author───────────┬─max_consecutive_days─┐
│ kssenii │ 32 │
│ Alexey Milovidov │ 30 │
│ alesapin │ 26 │
│ Azat Khuzhin │ 23 │
│ Nikolai Kochetov │ 15 │
│ feng lv │ 11 │
│ alexey-milovidov │ 11 │
│ Igor Nikonov │ 11 │
│ Maksim Kita │ 11 │
│ Nikita Vasilev │ 11 │
└──────────────────┴──────────────────────┘
返回 10 行。耗时:0.025 秒。处理了 62.78 千行,395.47 KB(254 万行/秒,16.02 MB/秒)。
文件的逐行提交历史
文件可能会被重命名。发生这种情况时，我们会产生一个重命名事件，其中 path 列会被设置为文件的新路径，而 old_path 则表示之前的位置，例如：
SELECT
time,
path,
old_path,
commit_hash,
commit_message
FROM git.file_changes
WHERE (path = 'src/Storages/StorageReplicatedMergeTree.cpp') AND (change_type = 'Rename')
┌────────────────time─┬─path────────────────────────────────────────┬─old_path─────────────────────────────────────┬─commit_hash──────────────────────────────┬─commit_message─┐
│ 2020-04-03 16:14:31 │ src/Storages/StorageReplicatedMergeTree.cpp │ dbms/Storages/StorageReplicatedMergeTree.cpp │ 06446b4f08a142d6f1bc30664c47ded88ab51782 │ dbms/ → src/ │
└─────────────────────┴─────────────────────────────────────────────┴──────────────────────────────────────────────┴──────────────────────────────────────────┴────────────────┘
返回 1 行。用时:0.135 秒。已处理 26.605 万行,20.73 MB(198 万行/秒,154.04 MB/秒)。
这使得查看文件的完整历史变得比较困难，因为我们没有一个单一的值来串联所有行或文件的变更。
为了解决这个问题，我们可以使用用户自定义函数（User Defined Functions，UDF）。由于这些函数目前无法递归调用，因此要确定一个文件的历史，我们必须定义一系列相互显式调用的 UDF。
这意味着我们只能在一定的最大深度内跟踪重命名 —— 下面的示例最大深度为 5。文件被重命名超过这个次数的情况不太可能发生，因此目前来说这已经足够了。
CREATE FUNCTION file_path_history AS (n) -> if(empty(n), [], arrayConcat([n], file_path_history_01((SELECT if(empty(old_path), Null, old_path) FROM git.file_changes WHERE path = n AND (change_type = 'Rename' OR change_type = 'Add') LIMIT 1))));
CREATE FUNCTION file_path_history_01 AS (n) -> if(isNull(n), [], arrayConcat([n], file_path_history_02((SELECT if(empty(old_path), Null, old_path) FROM git.file_changes WHERE path = n AND (change_type = 'Rename' OR change_type = 'Add') LIMIT 1))));
CREATE FUNCTION file_path_history_02 AS (n) -> if(isNull(n), [], arrayConcat([n], file_path_history_03((SELECT if(empty(old_path), Null, old_path) FROM git.file_changes WHERE path = n AND (change_type = 'Rename' OR change_type = 'Add') LIMIT 1))));
CREATE FUNCTION file_path_history_03 AS (n) -> if(isNull(n), [], arrayConcat([n], file_path_history_04((SELECT if(empty(old_path), Null, old_path) FROM git.file_changes WHERE path = n AND (change_type = 'Rename' OR change_type = 'Add') LIMIT 1))));
CREATE FUNCTION file_path_history_04 AS (n) -> if(isNull(n), [], arrayConcat([n], file_path_history_05((SELECT if(empty(old_path), Null, old_path) FROM git.file_changes WHERE path = n AND (change_type = 'Rename' OR change_type = 'Add') LIMIT 1))));
CREATE FUNCTION file_path_history_05 AS (n) -> if(isNull(n), [], [n]);
通过调用 file_path_history('src/Storages/StorageReplicatedMergeTree.cpp')，我们会递归遍历重命名历史，每一级函数调用都会使用 old_path 传递到下一级。最终结果使用 arrayConcat 进行合并。
例如，
SELECT file_path_history('src/Storages/StorageReplicatedMergeTree.cpp') AS paths
┌─paths─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┐
│ ['src/Storages/StorageReplicatedMergeTree.cpp','dbms/Storages/StorageReplicatedMergeTree.cpp','dbms/src/Storages/StorageReplicatedMergeTree.cpp'] │
└───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────┘
返回 1 行。用时:0.074 秒。已处理 34.406 万行,6.27 MB(465 万行/秒,84.71 MB/秒)。
我们现在可以利用这一能力构建出某个文件完整历史中的所有提交记录。在本示例中，我们针对每个 path 值各展示一个提交记录。
SELECT
time,
substring(commit_hash, 1, 11) AS commit,
change_type,
author,
path,
commit_message
FROM git.file_changes
WHERE path IN file_path_history('src/Storages/StorageReplicatedMergeTree.cpp')
ORDER BY time DESC
LIMIT 1 BY path
FORMAT PrettyCompactMonoBlock
┌────────────────time─┬─commit──────┬─change_type─┬─author─────────────┬─path─────────────────────────────────────────────┬─commit_message──────────────────────────────────────────────────────────────────┐
│ 2022-10-30 16:30:51 │ c68ab231f91 │ Modify │ Alexander Tokmakov │ src/Storages/StorageReplicatedMergeTree.cpp │ 修复访问处于删除状态的数据部分 │
│ 2020-04-03 15:21:24 │ 38a50f44d34 │ Modify │ alesapin │ dbms/Storages/StorageReplicatedMergeTree.cpp │ 删除空行 │
│ 2020-04-01 19:21:27 │ 1d5a77c1132 │ Modify │ alesapin │ dbms/src/Storages/StorageReplicatedMergeTree.cpp │ 尝试添加重命名主键列的功能,但最终禁用了该功能 │
└─────────────────────┴─────────────┴─────────────┴────────────────────┴──────────────────────────────────────────────────┴─────────────────────────────────────────────────────────────────────────────────┘
返回 3 行。耗时:0.170 秒。处理了 61.153 万行,41.76 MB(每秒 360 万行,246.07 MB/秒)。
未解决的问题
Git blame
由于目前无法在数组函数中保持状态，因此在实践中很难得到精确的结果。使用 arrayFold 或 arrayReduce 之后就可以做到，因为它们允许在每次迭代时保存状态。
一个近似的解决方案，足以用于高层次分析，大致可以像下面这样：
SELECT
line_number_new,
argMax(author, time),
argMax(line, time)
FROM git.line_changes
WHERE path IN file_path_history('src/Storages/StorageReplicatedMergeTree.cpp')
GROUP BY line_number_new
ORDER BY line_number_new ASC
LIMIT 20
┌─line_number_new─┬─argMax(author, time)─┬─argMax(line, time)────────────────────────────────────────────┐
│ 1 │ Alexey Milovidov │ #include <Disks/DiskSpaceMonitor.h> │
│ 2 │ s-kat │ #include <Common/FieldVisitors.h> │
│ 3 │ Anton Popov │ #include <cstddef> │
│ 4 │ Alexander Burmak │ #include <Common/typeid_cast.h> │
│ 5 │ avogar │ #include <Common/ThreadPool.h> │
│ 6 │ Alexander Burmak │ #include <Common/DiskSpaceMonitor.h> │
│ 7 │ Alexander Burmak │ #include <Common/ZooKeeper/Types.h> │
│ 8 │ Alexander Burmak │ #include <Common/escapeForFileName.h> │
│ 9 │ Alexander Burmak │ #include <Common/formatReadable.h> │
│ 10 │ Alexander Burmak │ #include <Common/thread_local_rng.h> │
│ 11 │ Alexander Burmak │ #include <Common/typeid_cast.h> │
│ 12 │ Nikolai Kochetov │ #include <Storages/MergeTree/DataPartStorageOnDisk.h> │
│ 13 │ alesapin │ #include <Disks/ObjectStorages/IMetadataStorage.h> │
│ 14 │ alesapin │ │
│ 15 │ Alexey Milovidov │ #include <DB/Databases/IDatabase.h> │
│ 16 │ Alexey Zatelepin │ #include <Storages/MergeTree/ReplicatedMergeTreePartheckout er.h> │
│ 17 │ CurtizJ │ #include <Storages/MergeTree/MergeTreeDataPart.h> │
│ 18 │ Kirill Shvakov │ #include <Parsers/ASTDropQuery.h> │
│ 19 │ s-kat │ #include <Storages/MergeTree/PinnedPartUUIDs.h> │
│ 20 │ Nikita Mikhaylov │ #include <Storages/MergeTree/MergeMutateExecutor.h> │
└─────────────────┴──────────────────────┴───────────────────────────────────────────────────────────────┘
返回 20 行。用时:0.547 秒。已处理 788 万行,679.20 MB(1442 万行/秒,1.24 GB/秒)。
我们欢迎在此提交精确或更完善的解决方案。
