SAML SSO setup

Enterprise plan feature

SAML SSO is available in the Enterprise plan. To upgrade, visit the plans page in the cloud console.

ClickHouse Cloud supports single-sign on (SSO) via security assertion markup language (SAML). This enables you to sign in securely to your ClickHouse Cloud organization by authenticating with your identity provider (IdP).

We currently support service provider-initiated SSO SSO, multiple organizations using separate connections, and just-in-time provisioning. We do not yet support a system for cross-domain identity management (SCIM) or attribute mapping.

Customers enabling SAML integrations can also designate the default role that will be assigned to new users and adjust session timeout settings.

Before you begin

You will need Admin permissions in your IdP, the ability to add a TXT record to the DNS settings for your domain, the Admin role in your ClickHouse Cloud organization. We recommend setting up a direct link to your organization in addition to your SAML connection to simplify the login process. Each IdP handles this differently. Read on for how to do this for your IdP.

How to configure your IdP

Steps

Access Organization settings

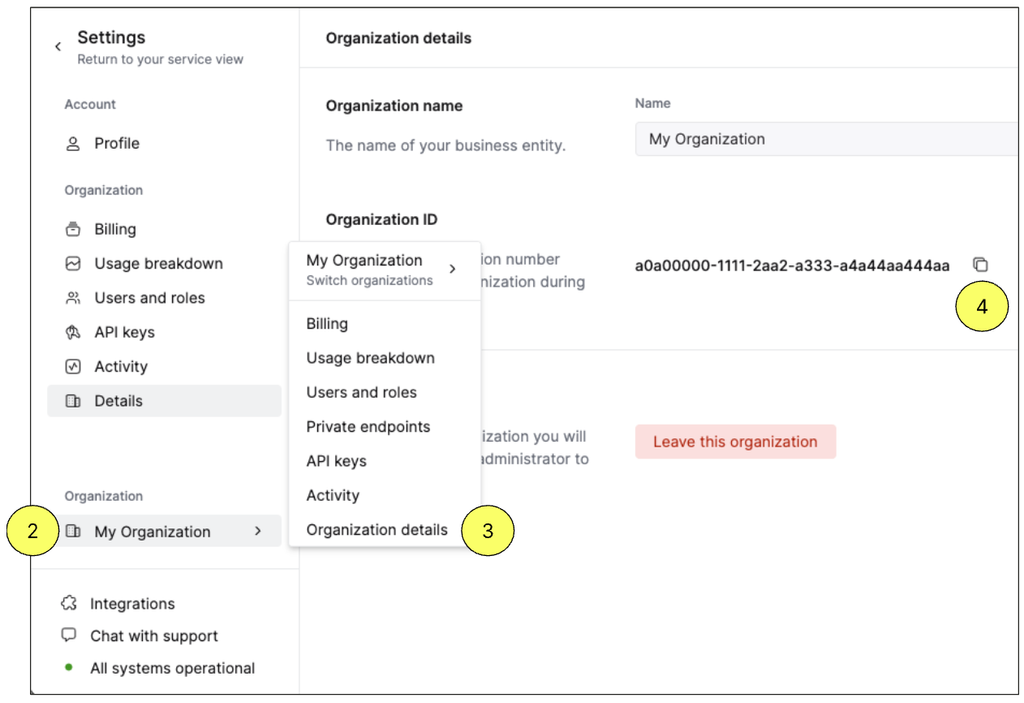

Click on your organization name in the lower left corner and select Organization details.

Enable SAML single sign-on

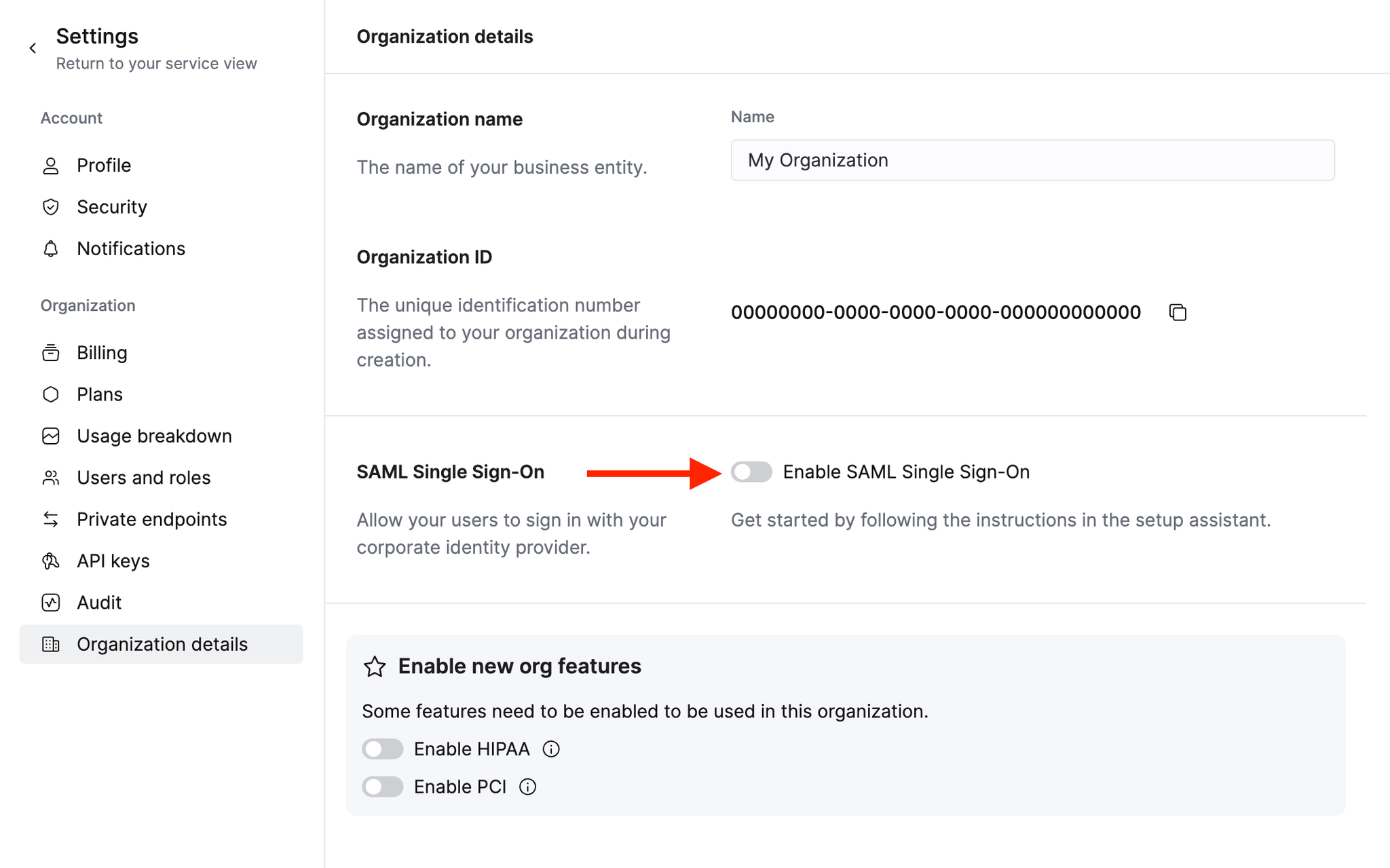

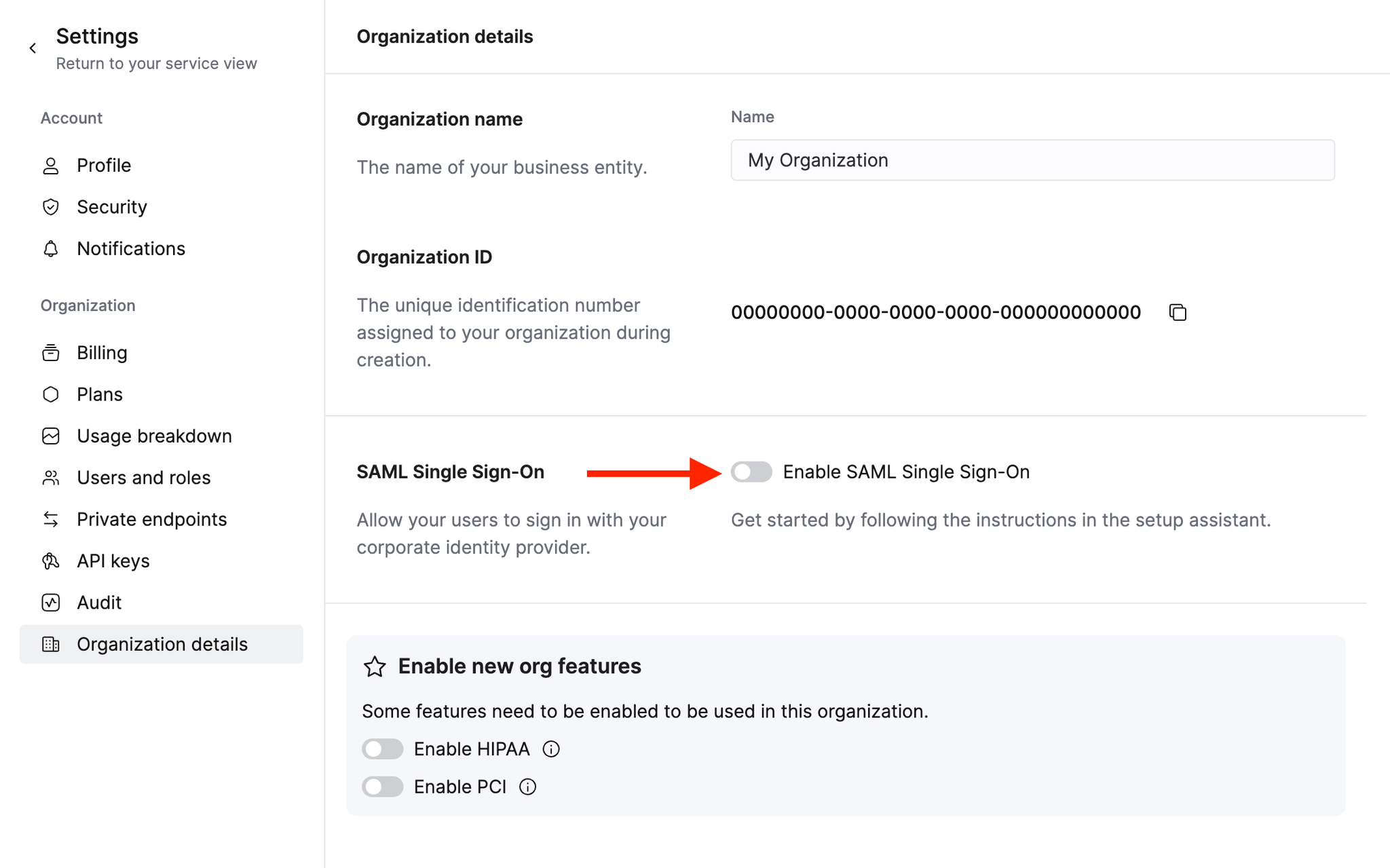

Click the toggle next to Enable SAML single sign-on. Leave this screen open as you will refer back to it several times during the setup process.

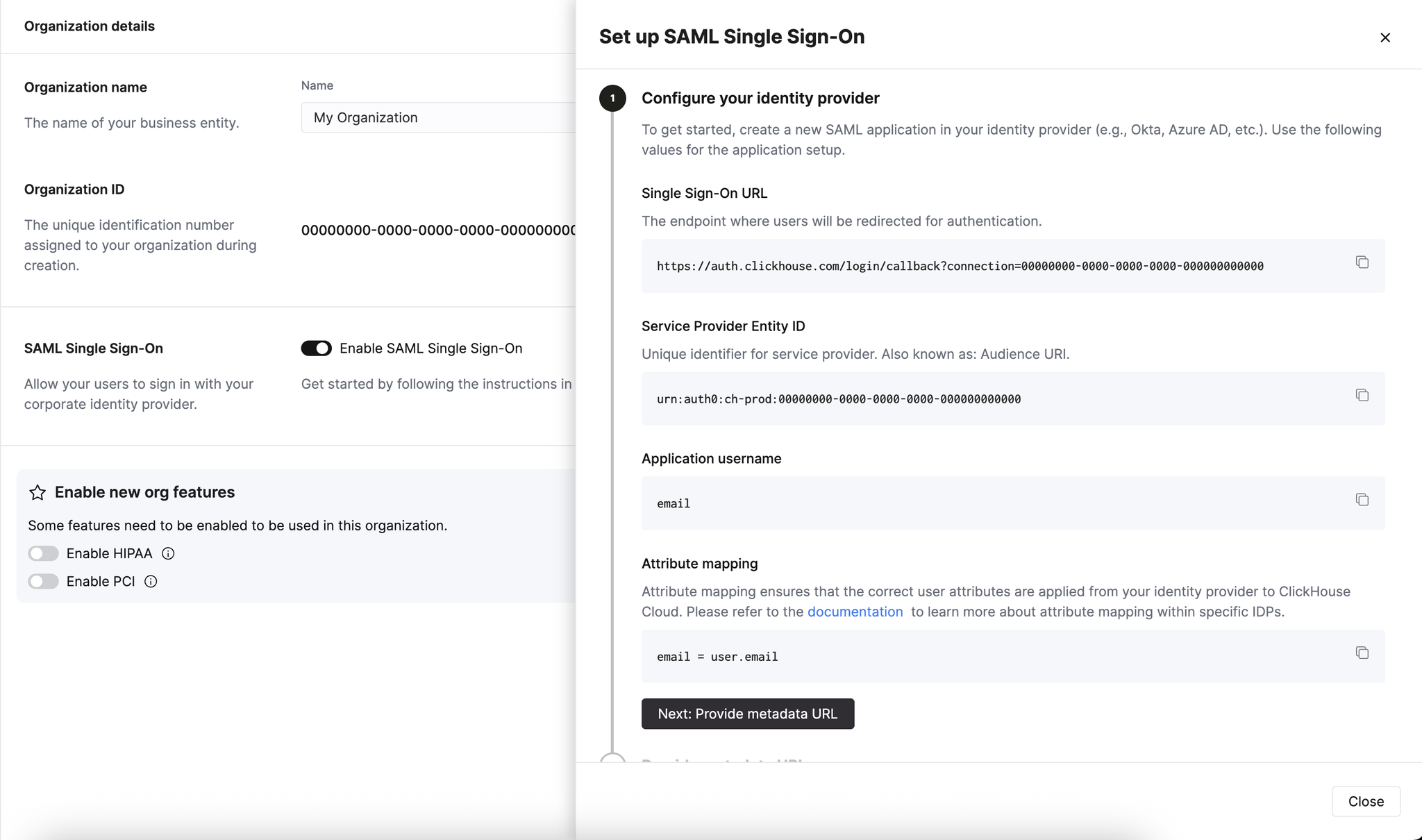

Create an application in your identity provider

Create an application within your identity provider and copy the values on the Enable SAML single sign-on screen to your identity provider configuration. For more information on this step, refer to your specific identity provider below.

• Configure Okta SAML
• Configure Google SAML
• Configure Azure (Microsoft) SAML
• Configure Duo SAML

Tip

ClickHouse does not support identity provider initiated sign-in. To make it easy for your users to access ClickHouse Cloud, set up a bookmark for your users using this sign-in URL format: https://console.clickhouse.cloud/?connection={orgId} where the {orgID} is your organization ID on the Organization details page.

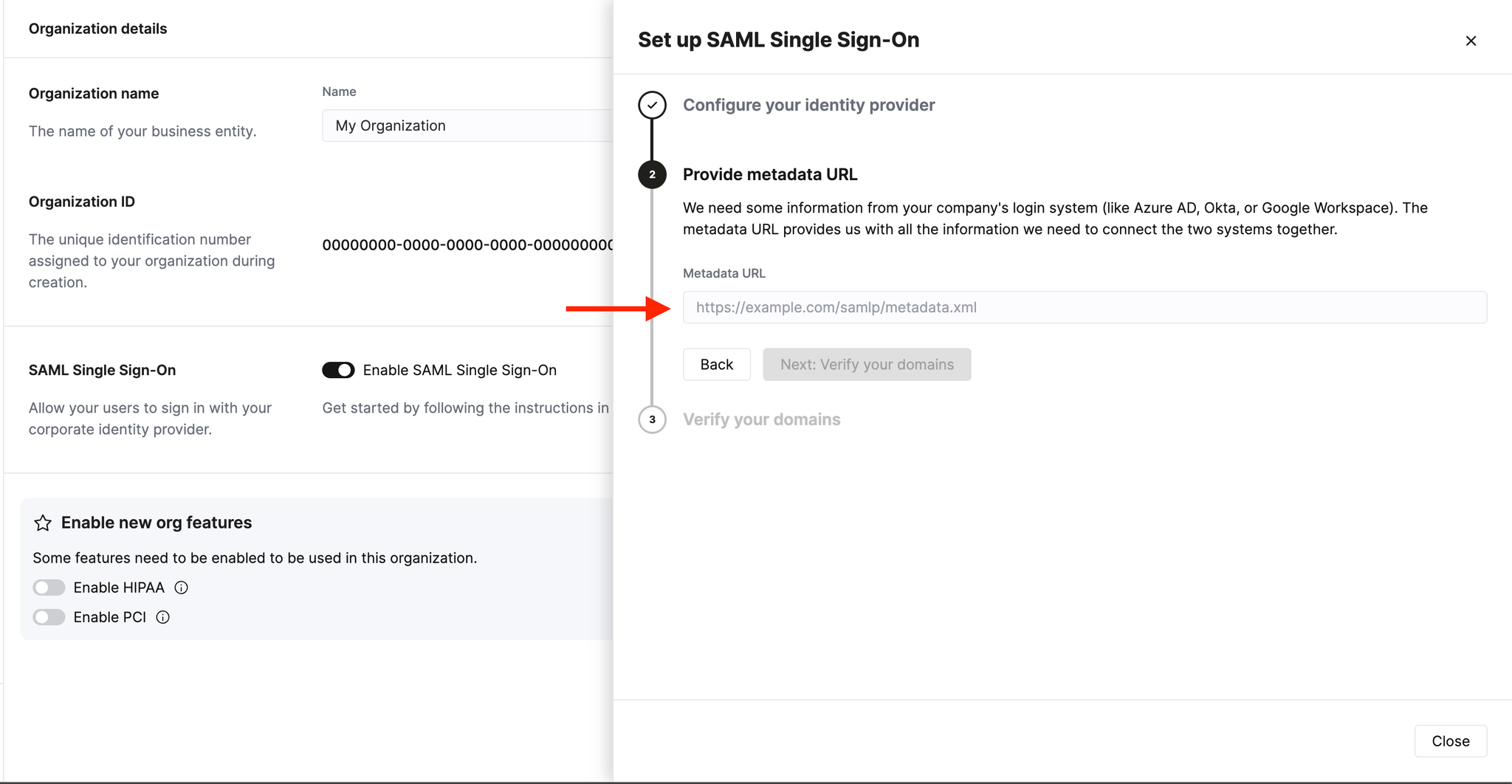

Add the metadata URL to your SAML configuration

Obtain the Metadata URL from your SAML provider. Return to ClickHouse Cloud, click Next: Provide metadata URL and paste the URL in the text box.

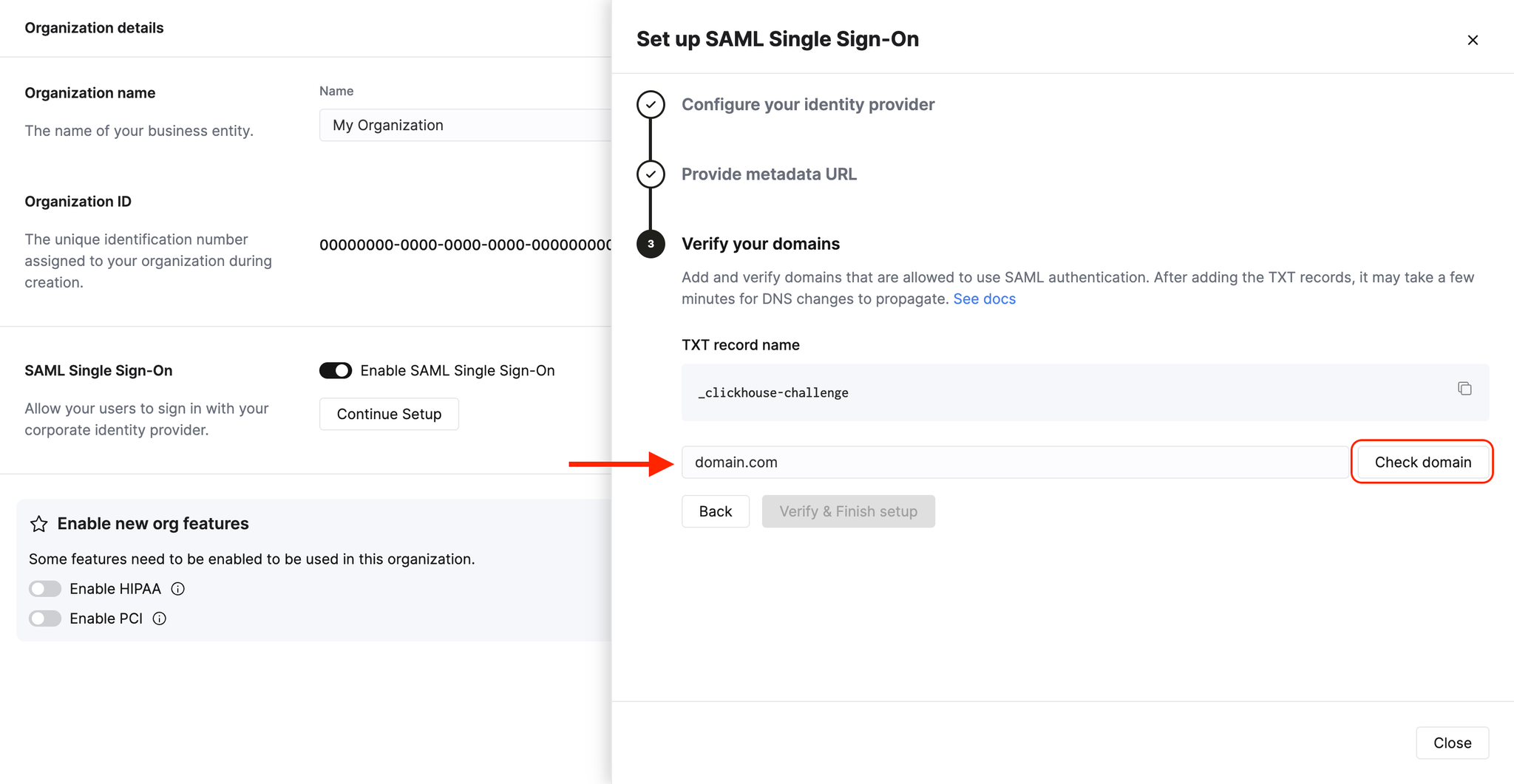

Get domain verification code

Click Next: Verify your domains. Enter your domain in the text box and click Check domain. The system will generate a random verification code for you to add to a TXT record with your DNS provider.

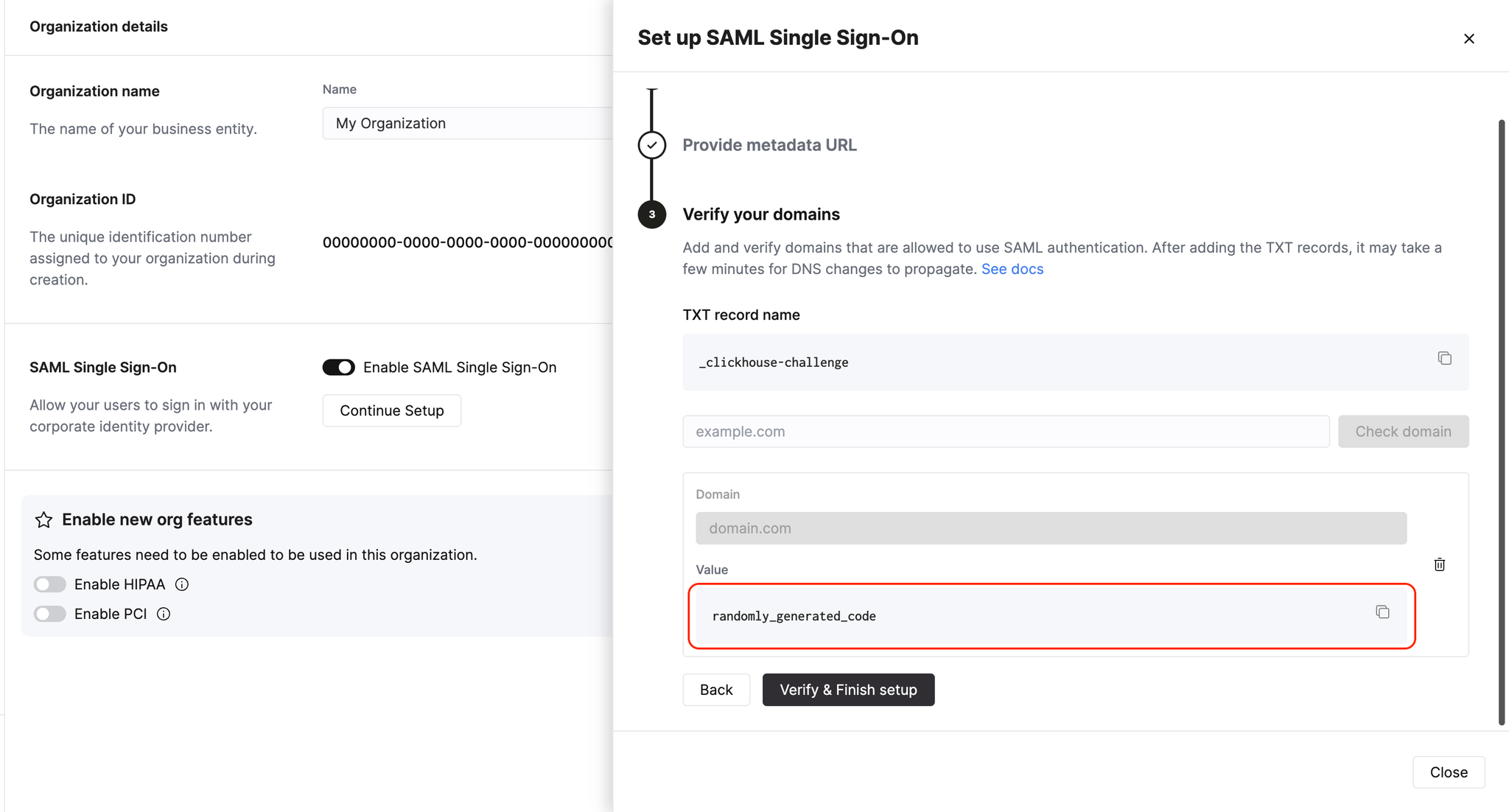

Verify your domain

Create a TXT record with your DNS provider. Copy the TXT record name to the TXT record Name field with your DNS provider. Copy the Value to the Content field with your DNS provider. Click Verify and Finish to complete the process.

Note

It may take several minutes for the DNS record to update and be verified. You may leave the setup page and return later to complete the process without restarting.

Update default role and session timeout

Once the SAML setup is complete, you can set the default role all users will be assigned when they log in and also adjust session timeout settings.

Available default roles include:

• Admin
• Service Admin
• Service Read Only
• Member

For more information regarding permissions assigned to these roles, please review Console roles and permissions.

Configure your admin user

Note

Users configured with a different authentication method will be retained until an admin in your organization removes them.

To assign your first admin user via SAML:

1. Log out of ClickHouse Cloud.
2. In your identity provider, assign the admin user to the ClickHouse application(s).
3. Ask the user to log in via https://console.clickhouse.cloud/?connection={orgId} (shortcut URL). This may be via a bookmark you created in the prior steps. The user will not appear in ClickHouse Cloud until their first login.
4. If the default SAML role is anything other than Admin, the user may need to log out and log back in with their original authentication method to update the new SAML user's role.
   • For email + password accounts, please use https://console.clickhouse.cloud/?with=email.
   • For social logins, please click the appropriate button (Continue with Google or Continue with Microsoft)

Note

email in ?with=email above is the literal parameter value, not a placeholder

5. Log out one more time and log back in via the shortcut URL to complete the last step below.

Tip

To reduce steps, you may set your SAML default role to Admin initially. When the admin is assigned in your identity provider and logs in for the first time, they can change the default role to a different value.

Remove other authentication methods

Remove any users that are using a non-SAML method to complete the integration and restrict access to only users originating from your identity provider connection.

Configure Okta SAML

You will configure two App Integrations in Okta for each ClickHouse organization: one SAML app and one bookmark to house your direct link.

1. Create a group to manage access

1. Log in to your Okta instance as an Administrator.

2. Select Groups on the left.

3. Click Add group.

4. Enter a name and description for the group. This group will be used to keep users consistent between the SAML app and its related bookmark app.

5. Click Save.

6. Click the name of the group that you created.

7. Click Assign people to assign users you would like to have access to this ClickHouse organization.

2. Create a bookmark app to enable users to seamlessly log in

1. Select Applications on the left, then select the Applications subheading.

2. Click Browse App Catalog.

3. Search for and select Bookmark App.

4. Click Add integration.

5. Select a label for the app.

6. Enter the URL as https://console.clickhouse.cloud/?connection={organizationid}

7. Go to the Assignments tab and add the group you created above.

3. Create a SAML app to enable the connection

1. Select Applications on the left, then select the Applications subheading.

2. Click Create App Integration.

3. Select SAML 2.0 and click Next.

4. Enter a name for your application and check the box next to Do not display application icon to users then click Next.

5. Use the following values to populate the SAML settings screen.

   Field	Value
   Single Sign On URL	Copy the Single Sign-On URL from the console
   Audience URI (SP Entity ID)	Copy the Service Provider Entity ID from the console
   Default RelayState	Leave blank
   Name ID format	Unspecified
   Application username	Email
   Update application username on	Create and update

6. Enter the following Attribute Statement.

   Name	Name format	Value
   email	Basic	user.email

7. Click Next.

8. Enter the requested information on the Feedback screen and click Finish.

9. Go to the Assignments tab and add the group you created above.

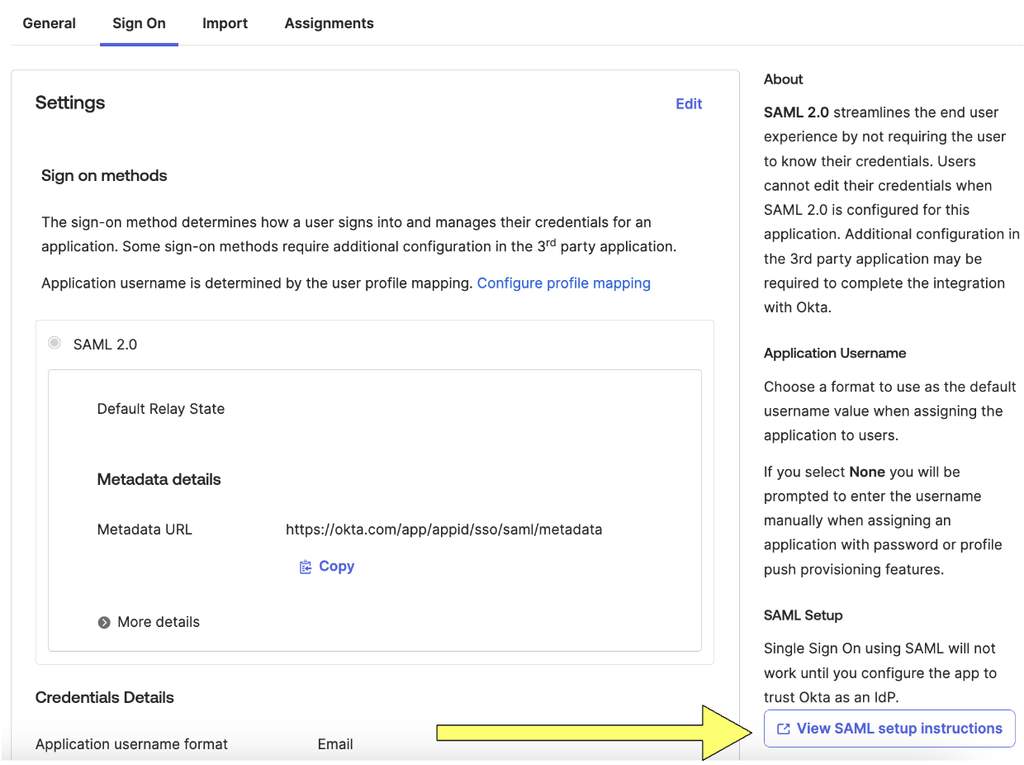

10. On the Sign On tab for your new app, click the Copy metadata URL button.

11. Return to Add the metadata URL to your SAML configuration to continue the process.

Configure Google SAML

You will configure one SAML app in Google for each organization and must provide your users the direct link (https://console.clickhouse.cloud/?connection={organizationId}) to bookmark if using multi-org SSO.

Create a Google Web App

1. Go to your Google Admin console (admin.google.com).

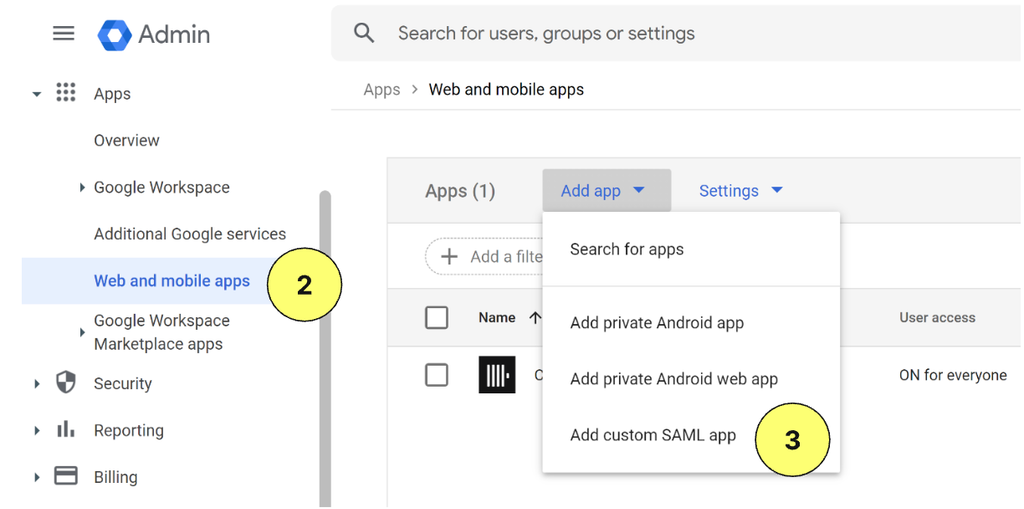

2. Click Apps, then Web and mobile apps on the left.

3. Click Add app from the top menu, then select Add custom SAML app.

4. Enter a name for the app and click Continue.

5. Copy the metadata URL and save it somewhere.

6. Enter the ACS URL and Entity ID below.

   Field	Value
   ACS URL	Copy the Single Sign-On URL from the console
   Entity ID	Copy the Service Provider Entity ID from the console

7. Check the box for Signed response.

8. Select EMAIL for the Name ID Format and leave the Name ID as Basic Information > Primary email.

9. Click Continue.

10. Enter the following Attribute mapping:

Field	Value
Basic information	Primary email
App attributes	email

13. Click Finish.

14. To enable the app click OFF for everyone and change the setting to ON for everyone. Access can also be limited to groups or organizational units by selecting options on the left side of the screen.

15. Return to Add the metadata URL to your SAML configuration to continue the process.

Configure Azure (Microsoft) SAML

Azure (Microsoft) SAML may also be referred to as Azure Active Directory (AD) or Microsoft Entra.

Create an Azure Enterprise Application

You will set up one application integration with a separate sign-on URL for each organization.

1. Log on to the Microsoft Entra admin center.

2. Navigate to Applications > Enterprise applications on the left.

3. Click New application on the top menu.

4. Click Create your own application on the top menu.

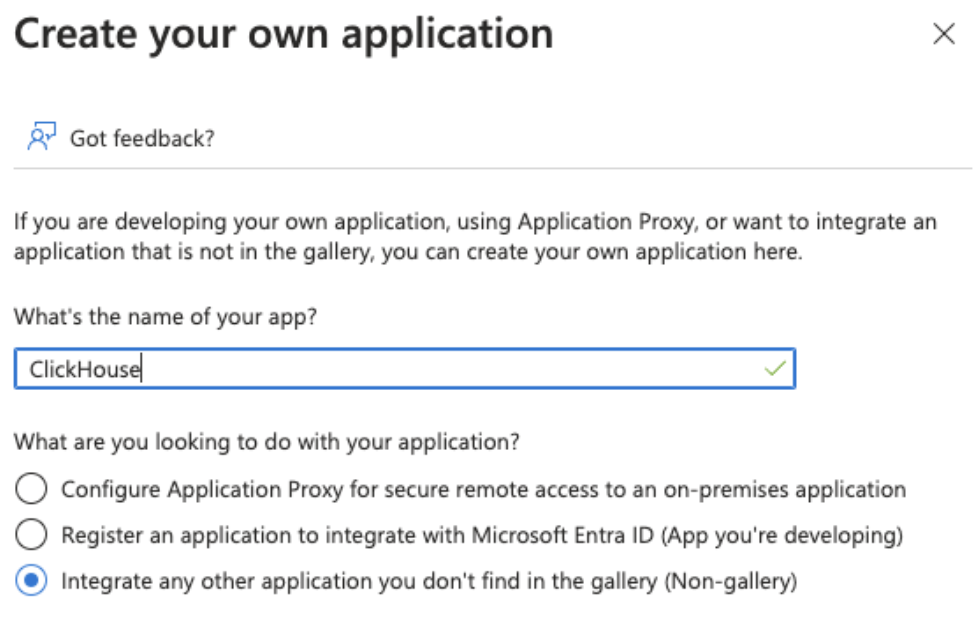

5. Enter a name and select Integrate any other application you don't find in the gallery (Non-gallery), then click Create.



6. Click Users and groups on the left and assign users.

7. Click Single sign-on on the left.

8. Click SAML.

9. Use the following settings to populate the Basic SAML Configuration screen.

   Field	Value
   Identifier (Entity ID)	Copy the Service Provider Entity ID from the console
   Reply URL (Assertion Consumer Service URL)	Copy the Single Sign-On URL from the console
   Sign on URL	https://console.clickhouse.cloud/?connection={organizationid}
   Relay State	Blank
   Logout URL	Blank

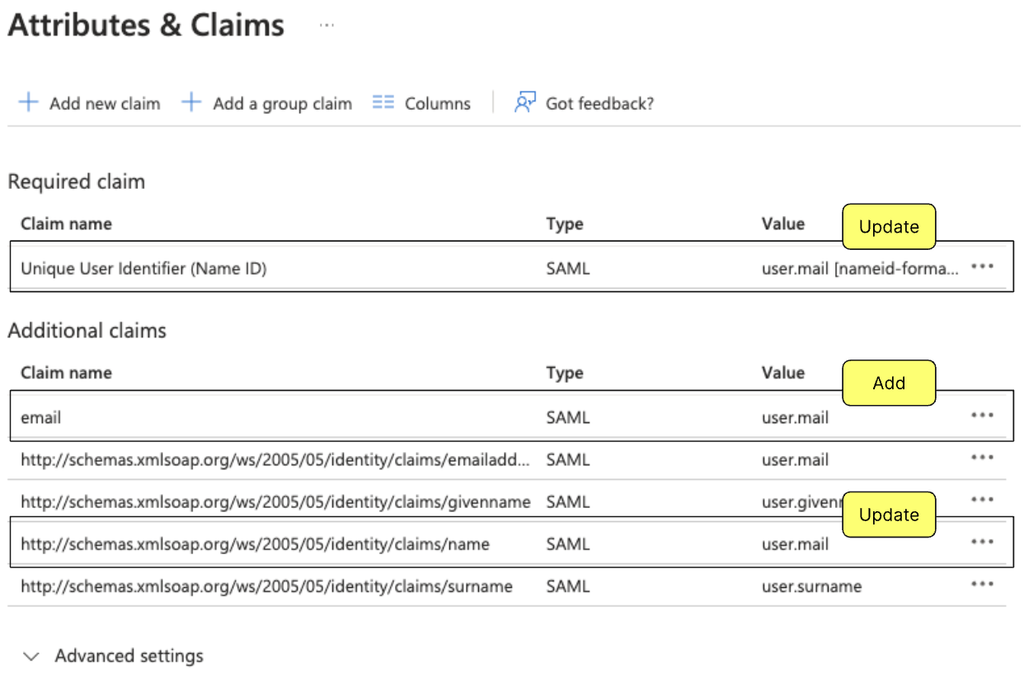

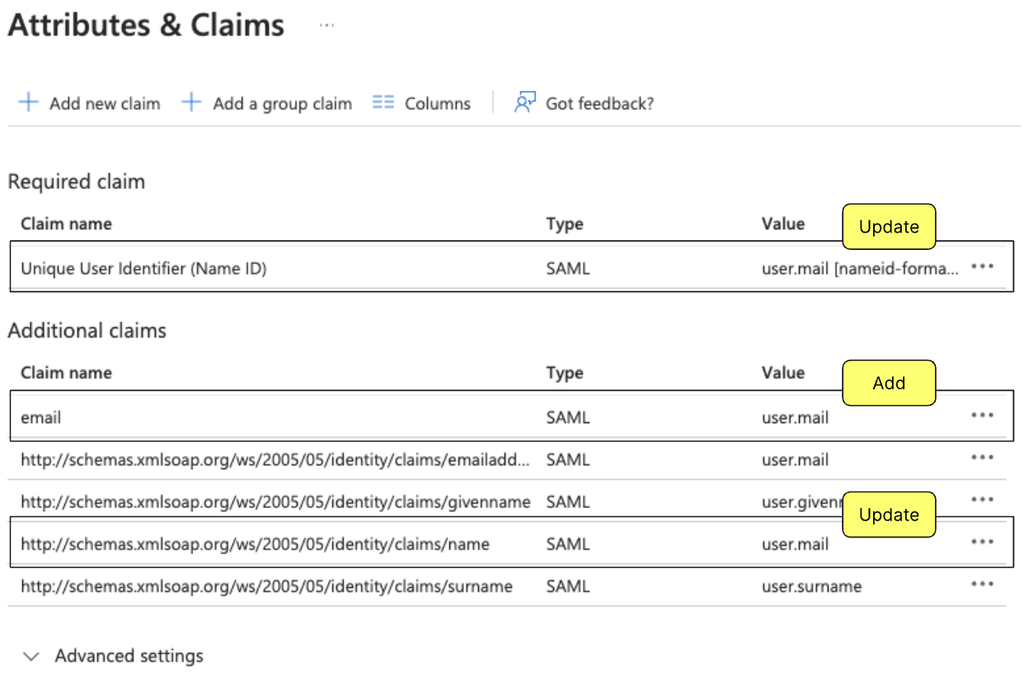

10. Add (A) or update (U) the following under Attributes & Claims:

    Claim name	Format	Source attribute
    (U) Unique User Identifier (Name ID)	Email address	user.mail
    (A) email	Basic	user.mail
    (U) /identity/claims/name	Omitted	user.mail



11. Copy the metadata URL and return to Add the metadata URL to your SAML configuration to continue the process.

Configure Duo SAML

Create a Generic SAML Service Provider for Duo

1. Follow the instructions for Duo Single Sign-On for Generic SAML Service Providers.

2. Use the following Bridge Attribute mapping:

   Bridge Attribute	ClickHouse Attribute
   Email Address	email

3. Use the following values to update your Cloud Application in Duo:

   Field	Value
   Entity ID	Copy the Service Provider Entity ID from the console
   Assertion Consumer Service (ACS) URL	Copy the Single Sign-On URL from the console
   Service Provider Login URL	https://console.clickhouse.cloud/?connection={organizationid}

4. Copy the metadata URL and return to Add the metadata URL to your SAML configuration to continue the process.

How it works

User management with SAML SSO

For more information on managing user permissions and restricting access to only SAML connections, refer to Manage cloud users.

Service provider-initiated SSO

We only utilize service provider-initiated SSO. This means users go to https://console.clickhouse.cloud and enter their email address to be redirected to the IdP for authentication. Users already authenticated via your IdP can use the direct link to automatically log in to your organization without entering their email address at the login page.

Multi-org SSO

ClickHouse Cloud supports multi-organization SSO by providing a separate connection for each organization. Use the direct link (https://console.clickhouse.cloud/?connection={organizationid}) to log in to each respective organization. Be sure to log out of one organization before logging into another.

Additional information

Security is our top priority when it comes to authentication. For this reason, we made a few decisions when implementing SSO that we need you to know.

• We only process service provider-initiated authentication flows. Users must navigate to https://console.clickhouse.cloud and enter an email address to be redirected to your identity provider. Instructions to add a bookmark application or shortcut are provided for your convenience so your users don't need to remember the URL.

• We do not automatically link SSO and non-SSO accounts. You may see multiple accounts for your users in your ClickHouse user list even if they are using the same email address.

Troubleshooting Common Issues

Error	Cause	Solution
There could be a misconfiguration in the system or a service outage	Identity provider initiated login	To resolve this error try using the direct link https://console.clickhouse.cloud/?connection={organizationid}. Follow the instructions for your identity provider above to make this the default login method for your users
You are directed to your identity provider, then back to the login page	The identity provider does not have the email attribute mapping	Follow the instructions for your identity provider above to configure the user email attribute and log in again
User is not assigned to this application	The user has not been assigned to the ClickHouse application in the identity provider	Assign the user to the application in the identity provider and log in again
You have multiple ClickHouse organizations integrated with SAML SSO and you are always logged into the same organization, regardless of which link or tile you use	You are still logged in to the first organization	Log out, then log in to the other organization
The URL briefly shows access denied	Your email domain does not match the domain we have configured	Reach out to support for assistance resolving this error
